Practicus drain body

DN 100, Vertical outlet

45210
45210
PDF product data sheet

KESSEL Practicus drain body, type of waterproofing, socket vertical, nominal size (DN) 100, odour trap included, drainage by Point drain, waterproofing layer upper section by Connection flange

  • Hygiene: hygienic, absolutely corrosion-free and durable material
  • absolutely corrosion-free and durable material
  • Fire protection: combinable with the Fire-Kit for fire and smoke protection
Item no. 45210
GTIN 4026092033593
Price group 10

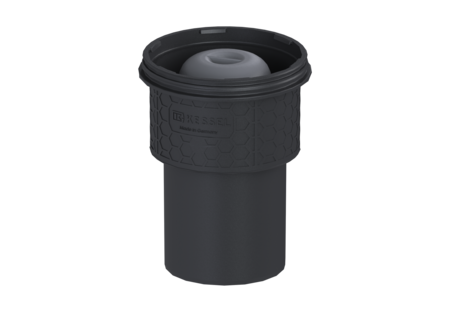

Practicus drain body DN 100, Vertical outlet
In combination with an upper section, the Practicus polymer drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The drain meets particular sound insulation requirements in accordance with the measurements of the Fraunhofer Institute in Stuttgart. Variant System: 125 Waterproofing layer on the upper section: Connection flange Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics Nominal size (DN): 100 Outer diameter (OD): 110 mm Odour trap: included Approval: Z-19.53-2414,Z-19.53-2414_V,Z-19.17-1719,Z-19.17-1719_V Dimensions Net weight: 0,74 kg Gross weight: 0,85 kg Diameter: 135 mm Height: 201 mm Packaging dimension: length: 200 mm Packaging dimension: width: 200 mm Packaging dimension: height: 175 mm Tank/drain body Number of outlets: 1 Material of drain body: PP Socket version: vertical
  Title Item no.
48176 Upper section Slotted cover, anti-slip, L 15 48176 Show
48907 Variofix upper section Slotted cover, 304 SST, anti-slip, L 15 48907 Show
59192 Ferrofix upper section Sys 125, for PVC, Hole patt cover, L 15 59192 Show
  Title Item no.
  Title Item no.
48100 Fire protection insert Fire-Kit 100, for DN 100 48100 Show
48403 Extension section H: 140 mm, with glued flange 48403 Show
48404 Extension section H: 147 mm, with pressure sealing flange 48404 Show
48900 Extension section H: 120 mm, with glued flange 48900 Show
48987 Extension section H: 136 mm, without inlet 48987 Show
48989 Extension section H: 136 mm, with side inlet DN 50 48989 Show
48990 Quick-Fit pipe penetration seal for core drillholes with fire protection 48990 Show
48991 Quick-Fit pipe penetration seal for core drillholes, w/o fire protection 48991 Show
  Title Item no.
  • Nominal size (DN) (nennweite): 100
  • Material of drain body (material_grundkoerper): PP
  • TÜV test mark (pruefzeichen): ID 1111244461
  • Socket version (stutzen_ausfuehrung): vertical
  • Odour trap (geruchsverschluss): included
