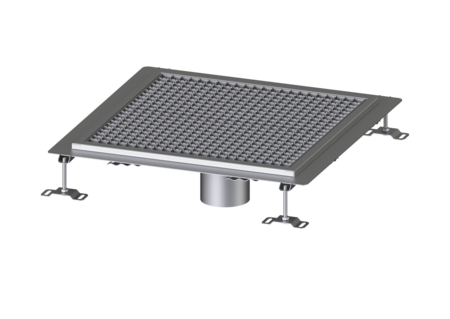

Floor Tray Ferrofix
glued flange H: 15mm, 600x600mm
KESSEL Floor Tray Ferrofix, nominal size (DN) 125, Glued flange height 15 mm, width 600 mm, length 600 mm, type of cover Slotted cover, socket, waterproofing layer upper section by Adhesive flange (suitable for moisture barriers), outside diameter (OD) 125 mm
- Made of particularly a hygienic and mechanically highly resistant stainless steel
- Variably combinable with suitable drain bodies
| Item no. | 6060600 |
|---|---|
| GTIN | 4026092099308 |
| Price group | 80 |
Floor Tray Ferrofix glued flange H: 15mm, 600x600mm
The Ferrofix floor tray made of stainless steel with a material thickness of 2.0 mm (pickled in the immersion bath) is equipped with polished visible ridges, longitudinal and transverse slopes, feet for height adjustment and stainless steel outlet nozzles. The channel profile is suitable for joint sealing and has a circumferential adhesive edge (15 mm deep and 50 mm folded outwards) with welded mitres. The glued flange is suitable for connecting waterproofing layers in accordance with DIN 18534, for all waterproofing classes. Variant Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I General characteristics Nominal size (DN): 125 Outer diameter (OD): 125 mm Glued flange height: 15 mm Dimensions Net weight: 19,4 kg Gross weight: 19,4 kg Length: 600 mm Width: 600 mm Height: 60 mm Packaging dimension: length: 770 mm Packaging dimension: width: 755 mm Packaging dimension: height: 265 mm Coverage features Type of cover: Slotted cover Colour of cover: silver Locking: placed Load class: L 15 (EN 1253-1) Slip resistance class: R12 according to DIN 51130; C according to DIN 51097 Upper section material: Stainless steel 14301
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Nominal size (DN) (nennweite):
125
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): Slotted cover
- Length (laenge): 600 mm
- Width (breite): 600 mm
- Load class (belastungsklasse): L 15 (EN 1253-1)
- (oberflaeche):
