The elegant solution: the Linearis Comfort is our premium shower channel for maximum showering comfort. The reversible insert in a timeless stainless steel design is integrated into the floor of the shower area on the wall or room side. This creates a floor-level surface that enables a barrier-free room experience. And the shower channel also meets the most discerning demands in terms of acoustic comfort, offering excellent sound protection.
With five different channel lengths from 750 to 1,150 mm, the Linear Comfortshower channel is available in suitable sizes for different room dimensions. It can be combined with all drain bodies and accessories from the 125 modular system for point and linear drainage.

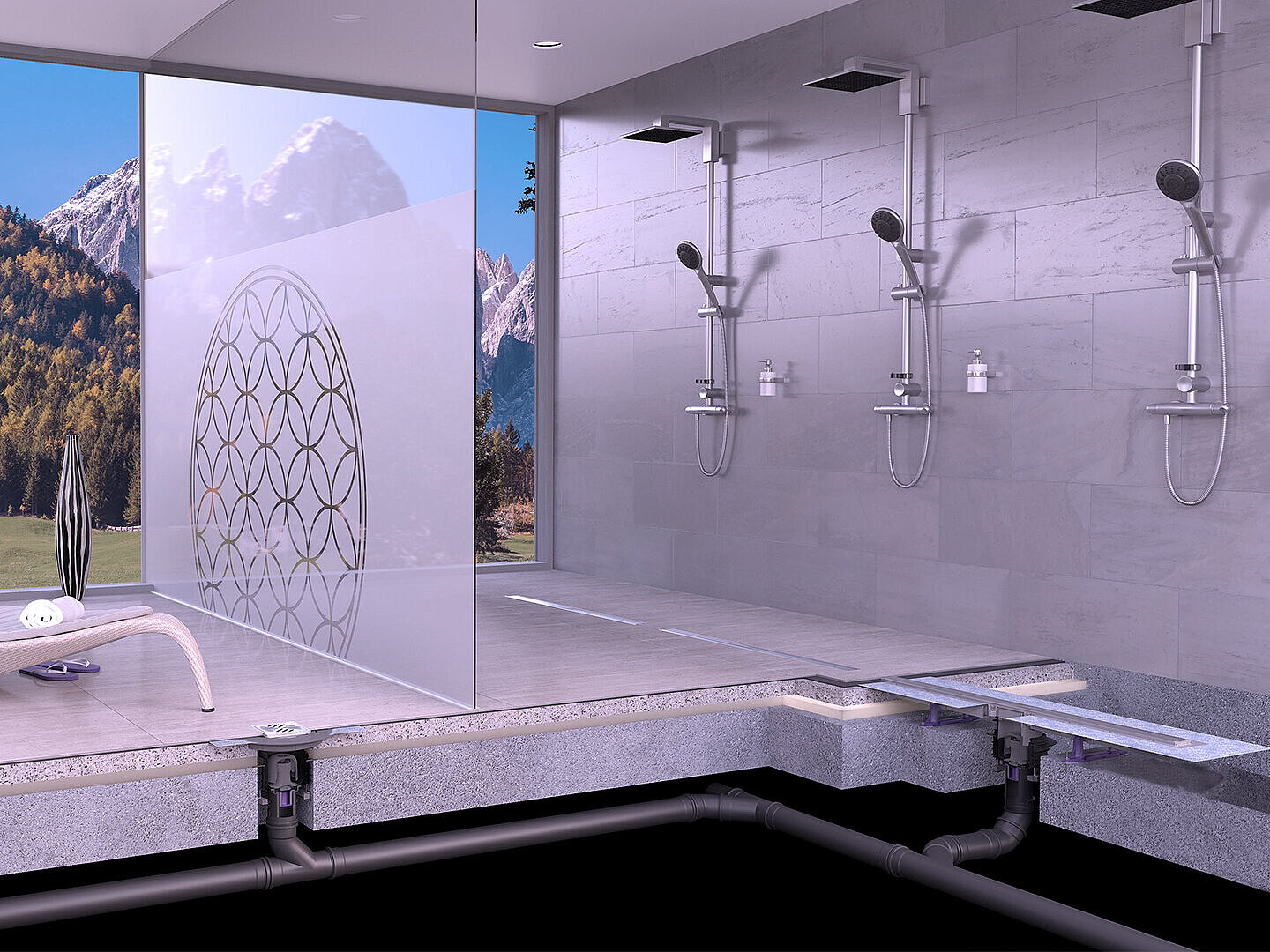

The Linearis Comfort shower channel in the wellness area – discreetly integrated into the shower area and ideal for demanding applications where comfort and aesthetics are paramount.

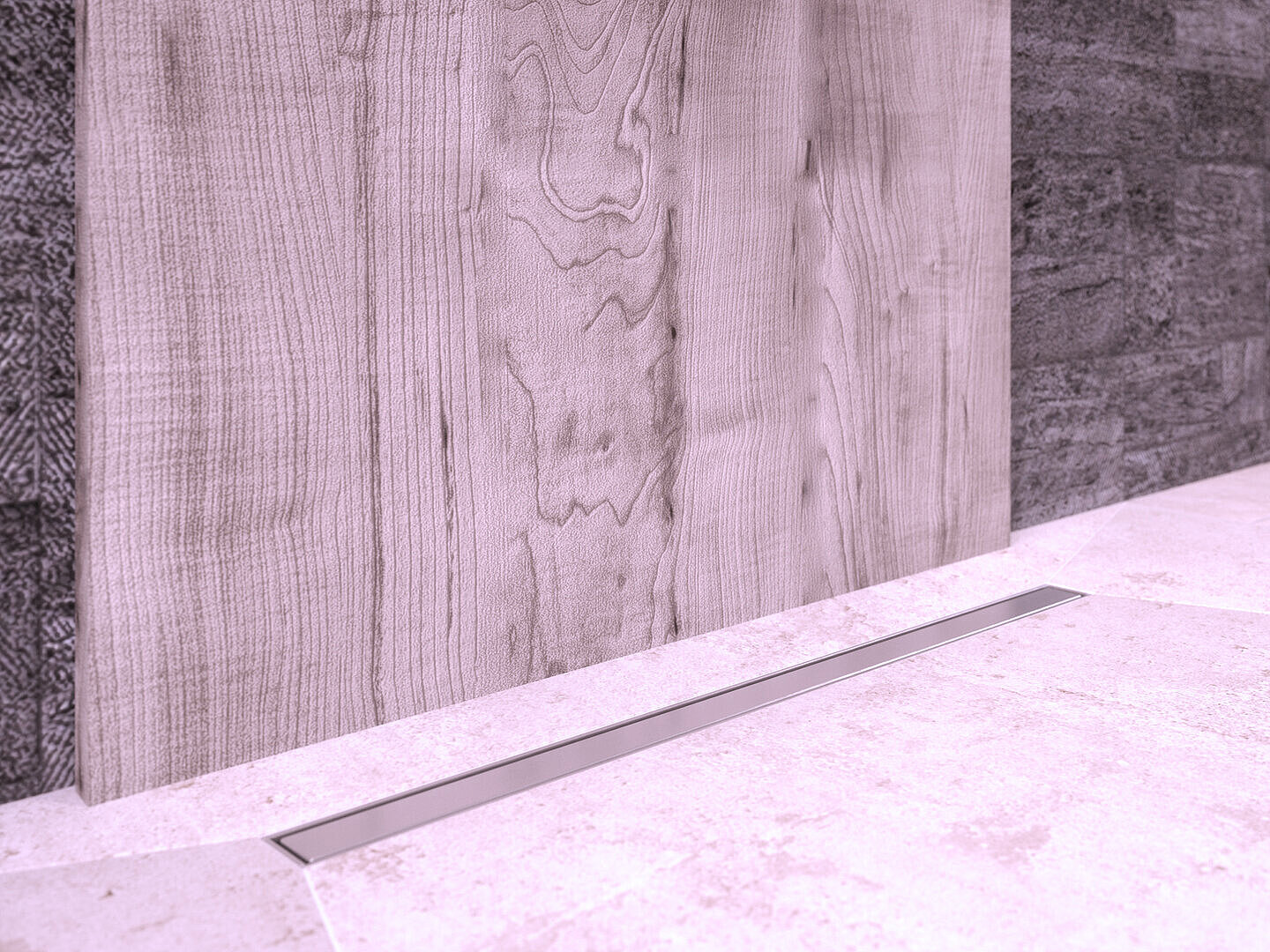

The Linearis Comfort shower channel in a private bathroom – integrated into the floor-level shower along the wall and designed to provide an attractive, convenient Drainage solution.
Application possibilities
The Linearis Comfort shower channel is the high-quality solution for floor-level showers installed against a wall or in the centre of the room. It is particularly suitable for accessible bathroom designs where comfort and aesthetics are key. It thus creates an open and comfortable spatial experience. A further advantage is its excellent sound insulation, as well as its compatibility with fire protection solutions up to R 120.

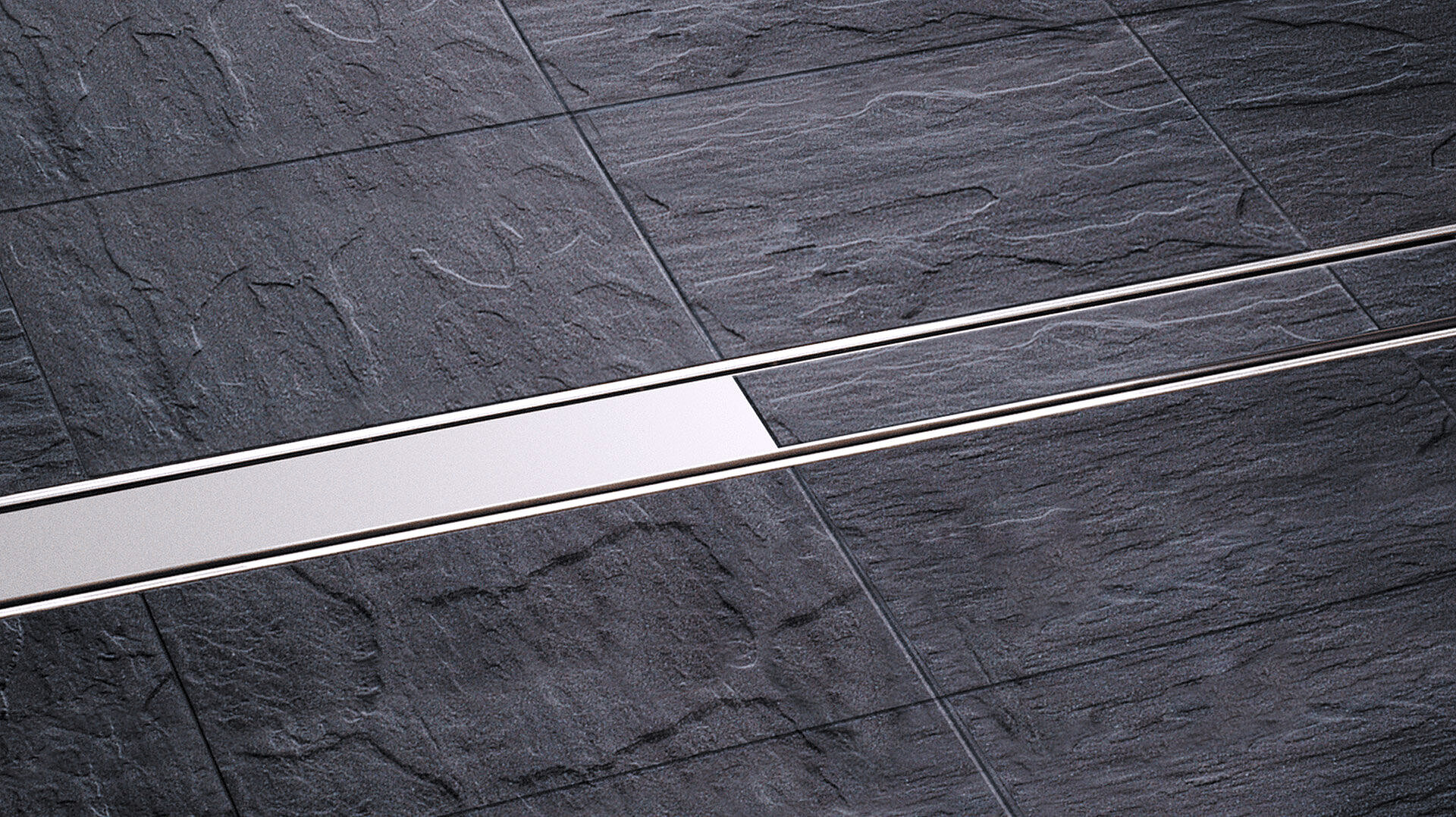

Individual design with a reversible stainless steel insert
The shower channel can be individually designed by turning over the stainless steel insert: On the underside there is a recess for floor tiles. In this way the Linearis Compact either becomes an eye-catcher that is set apart from the surrounding floor of the shower area or it is inserted completely unobtrusively.
Highest fire protection standards

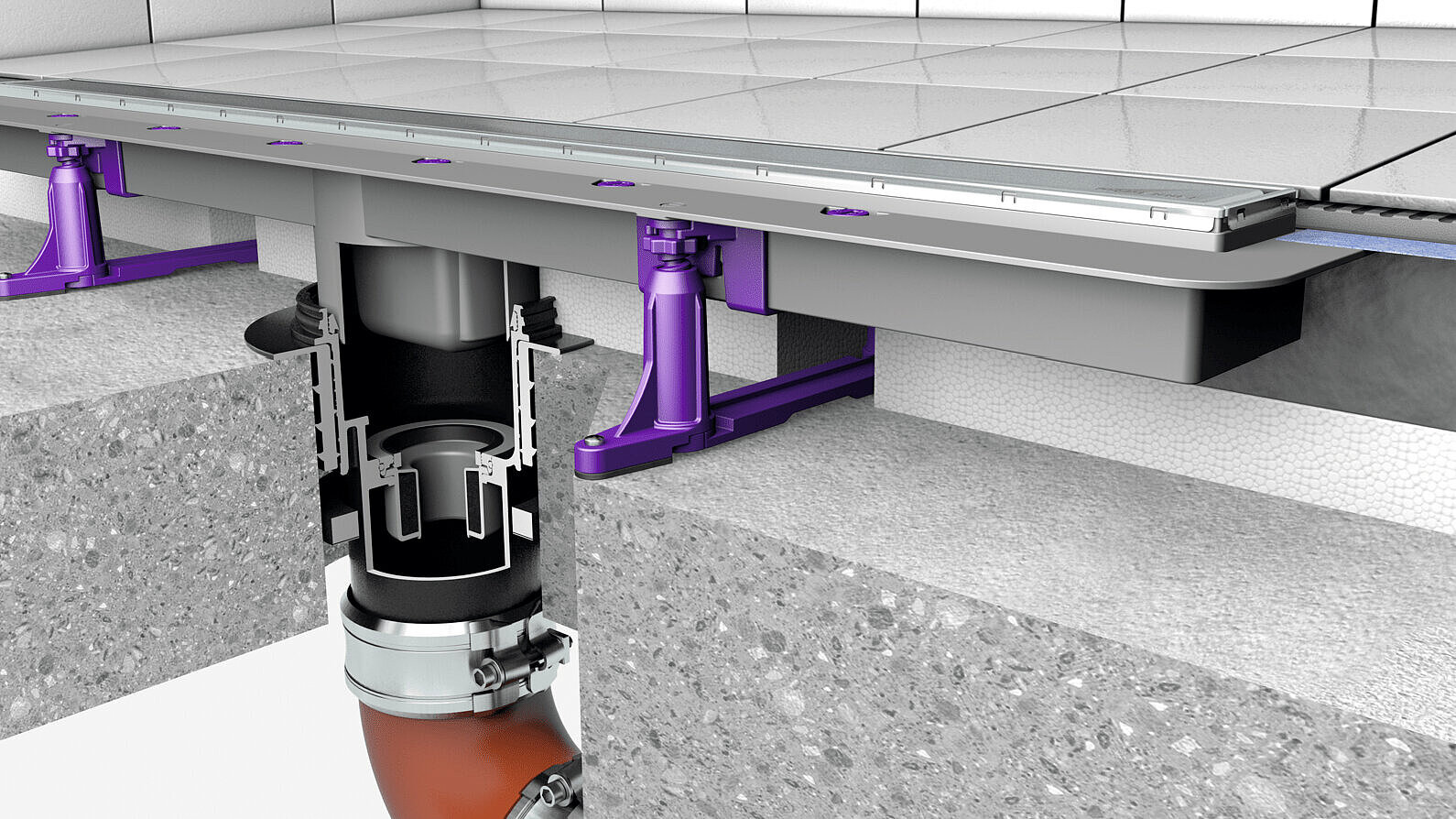

In case of fire, water outlets constitute a risk, as the fire can pass through the discharge pipes and spread to other parts of the building. For protection purposes, our drains can be equipped with the Fire-Kit fire and smoke protection insert or the Quick-Fit pipe penetration seal with integrated fire protection. As soon as fire penetrates the drain body, the fire protection compound inside it swells automatically and seals the pipe socket against flames and smoke. Both the Fire-Kit and the Quick-Fit fulfil the highest fire resistance class R 120.

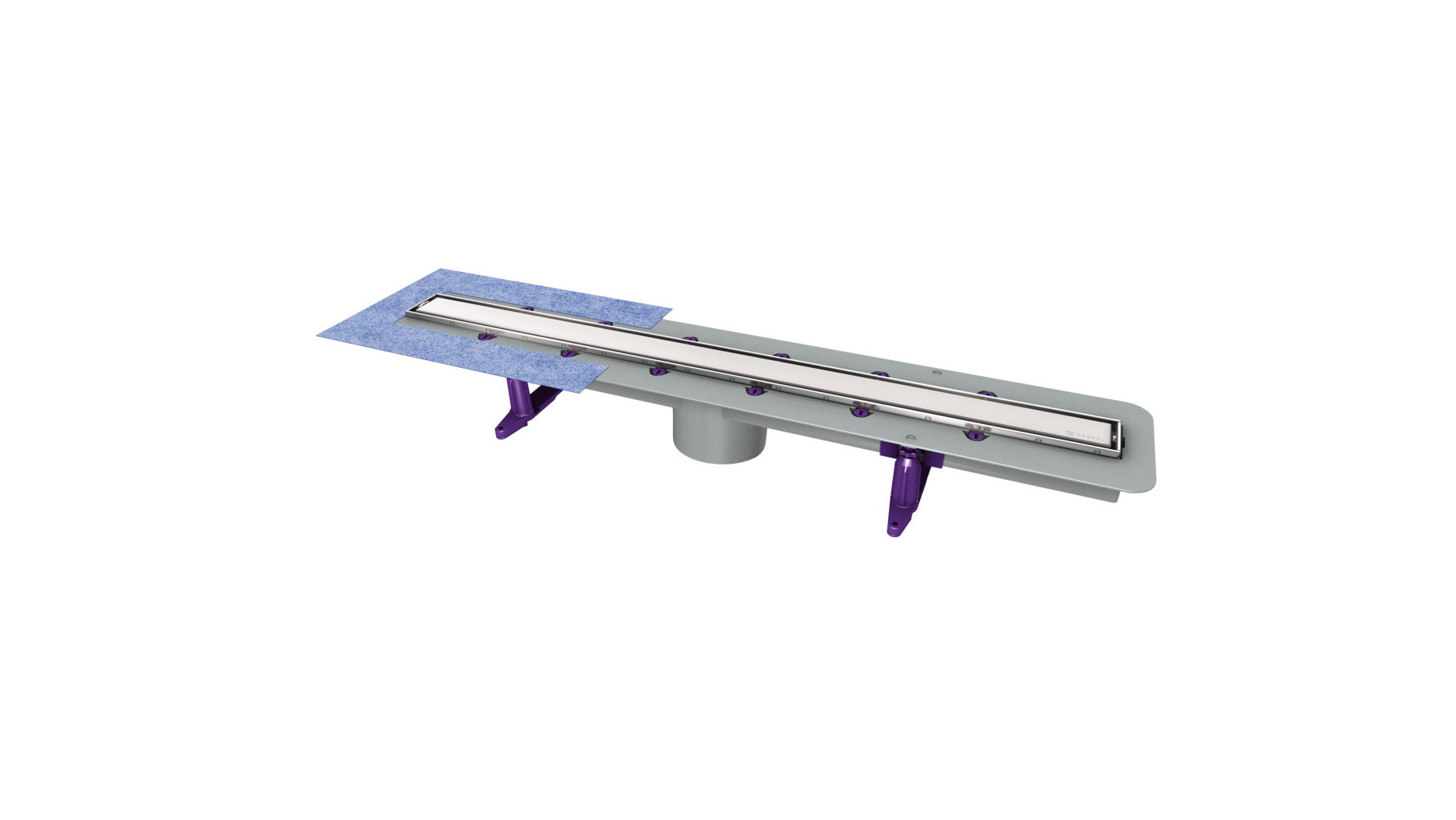

Linearis Comfort upper section

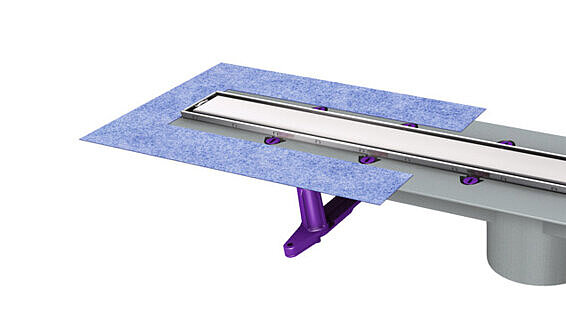

With factory-mounted waterproofing membrane
| Load class | Nominal size (DN) | Rim length | Outer dimension, length | Item no. | ||
|---|---|---|---|---|---|---|
48928M
|
K 3 (EN 1253-1) | 125 | 750 mm | 815 mm | 48928M | Show |
48929M
|
K 3 (EN 1253-1) | 125 | 850 mm | 915 mm | 48929M | Show |
48930M
|
K 3 (EN 1253-1) | 125 | 950 mm | 1.015 mm | 48930M | Show |
48931M
|
K 3 (EN 1253-1) | 125 | 1.050 mm | 1.115 mm | 48931M | Show |
48932M
|
K 3 (EN 1253-1) | 125 | 1.150 mm | 1.215 mm | 48932M | Show |
