The Ecolift M is the clever alternative to a conventional lifting station. The hybrid lifting station pumps only when it is really necessary – in the event of backwater. Otherwise, the Ecolift M simply makes use of the natural gradient to the sewer. This, of course, saves energy. Since it only rarely runs, it also does not need as much maintenance. It is also more reliable because it works without any power as it makes use of the gradient – unlike conventional lifting stations.

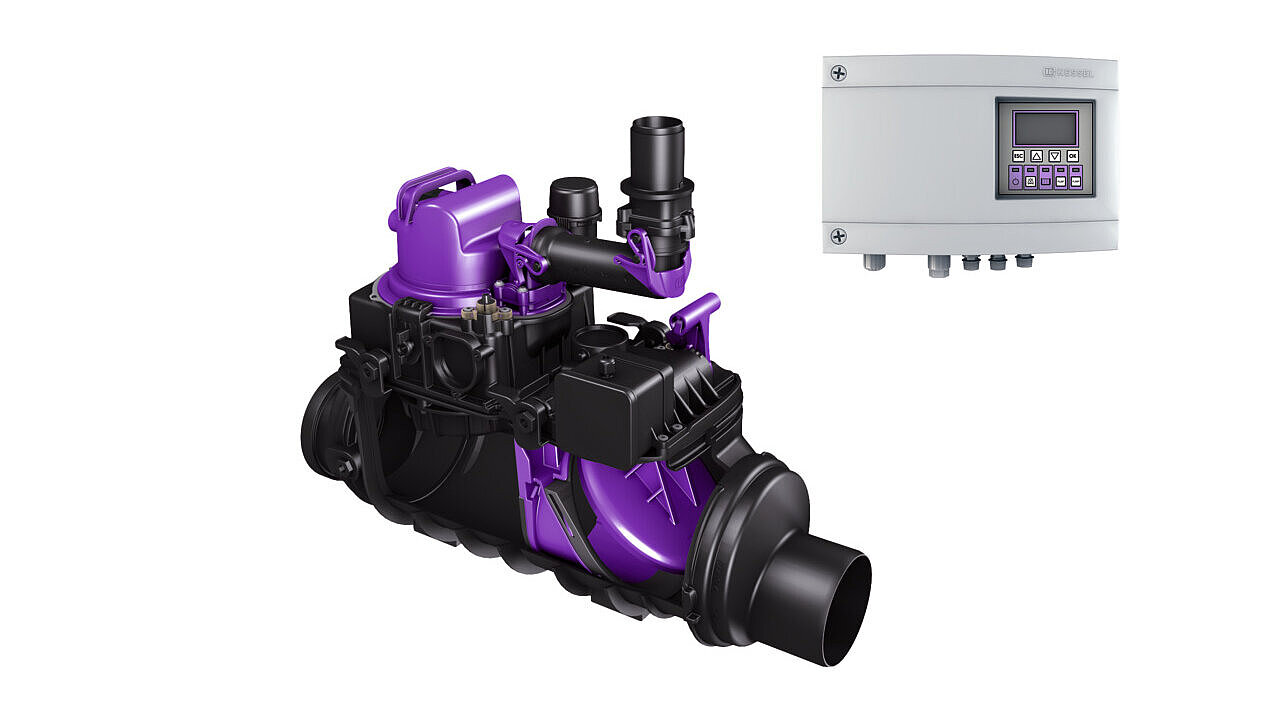

The Ecolift M is available in the nominal sizes DN 100 (Ø 110 mm), DN 125 (Ø 125 mm), DN 150 (Ø 160 mm) and DN 200 (Ø 200 mm) as well as for installation in an exposed drainage pipe or floor slab. The latter version is optionally available with a black or tileable cover.

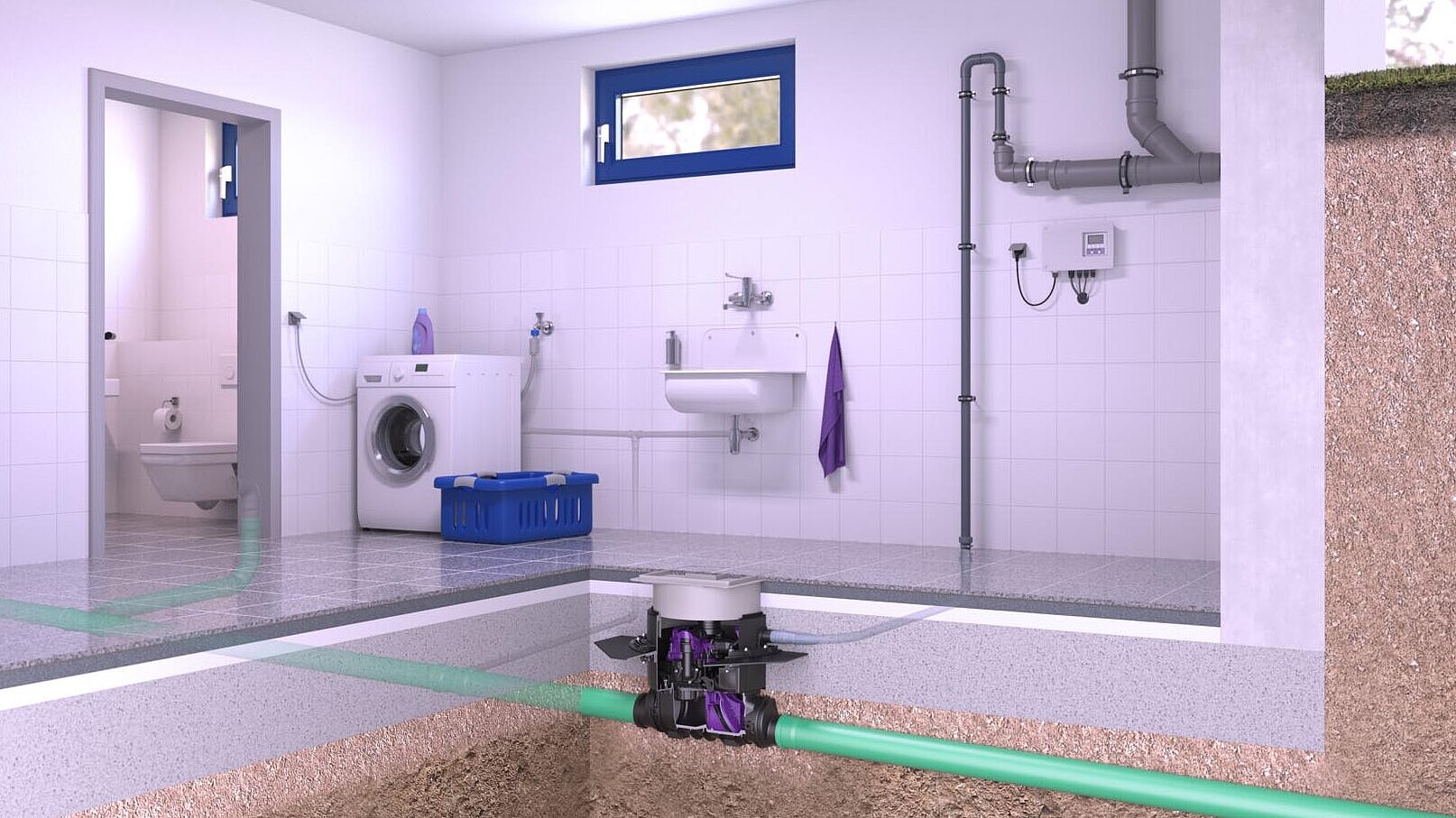

Ecolift hybrid lifting system in the basement of a detached house, installed in the floor slab.

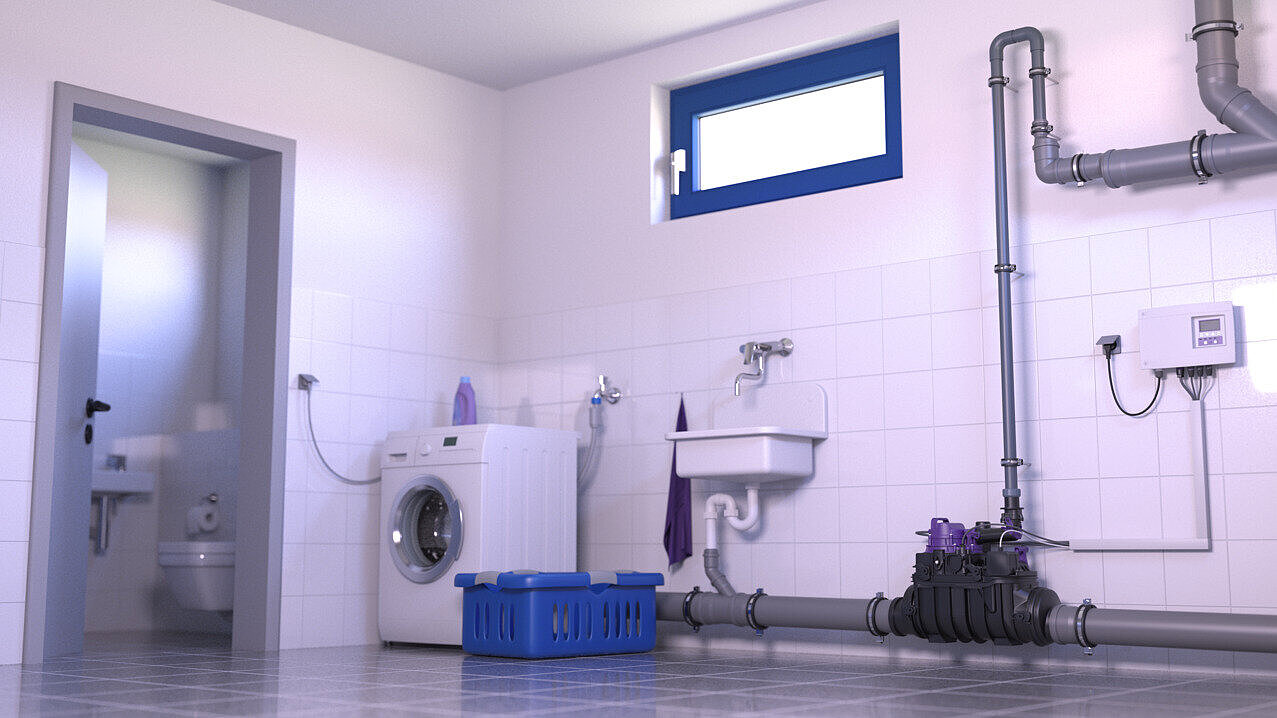

Professional installation in the basement in the exposed wastewater pipe for reliable wastewater pumping.
Application possibilities
The Ecolift hybrid lifting unit is the ideal solution for detached houses that require reliable and efficient wastewater disposal. Whether for installation in the open wastewater pipe or directly in the floor slab, this innovative system utilises the natural gradient to the sewer to transport the wastewater in an environmentally friendly way. Only in the event of a backflow is the water automatically disposed of via a pump, providing a safe and sustainable solution for your home. See possible installation examples here:
Simply radon-proof
Strahlenschutz
The radioactive noble gas radon is a natural element that is present virtually everywhere in our earth's crust. If it accumulates in a high concentration within enclosed spaces, it can be hazardous to humans: Radon is considered an environmental risk factor for lung cancer. The Ecolift M for floor slab installation helps to prevent this health hazard from entering buildings. The hybrid lifting station has been tested and certified as radon-proof.

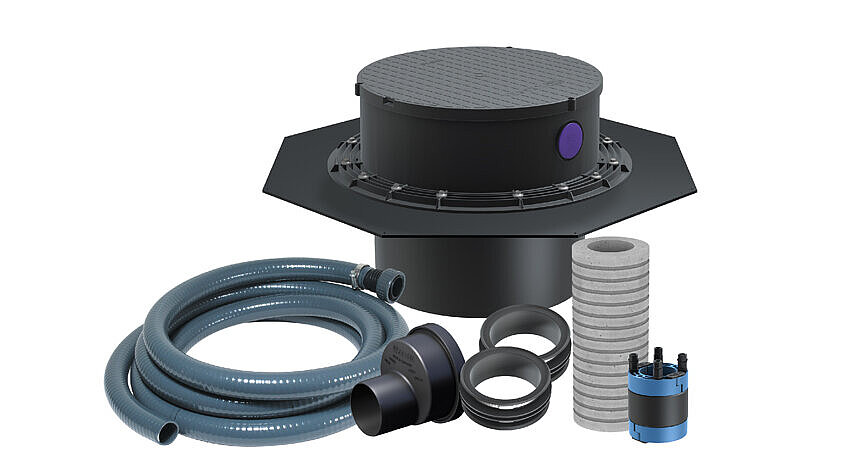

Installation kit for the floor slab
The Ecolift M is available for floor slab installation and can also be installed in waterproof concrete by using an extension piece with a central flange and an elastomer waterproofing membrane. The integrated drainage function ensures that any surface water that arises, for example due to a pipe break, will be pumped into the sewer despite there being backwater.
Self-diagnosis system
The system has a plug-in ready Comfort control unit with the self-diagnosis system SDS, a display for showing the operating status and maintenance information as well as a connection option for centralised control systems. It can be connected without the need for an electrician.
Sustainability confirmed by experts
The Ecolift M's energy consumption is 90% lower compared to conventional lifting stations and, at the same time, higher operational reliability is also convincing for sustainability experts: At the DGNB Sustainability Challenge, the annual prize competition run by the German Society for Sustainable Building, our hybrid lifting station was ranked among the top 3 product and service innovations of the year. This confirms to us that the “direct route” is the right one!
Ecolift backwater lifting station M Underfloor

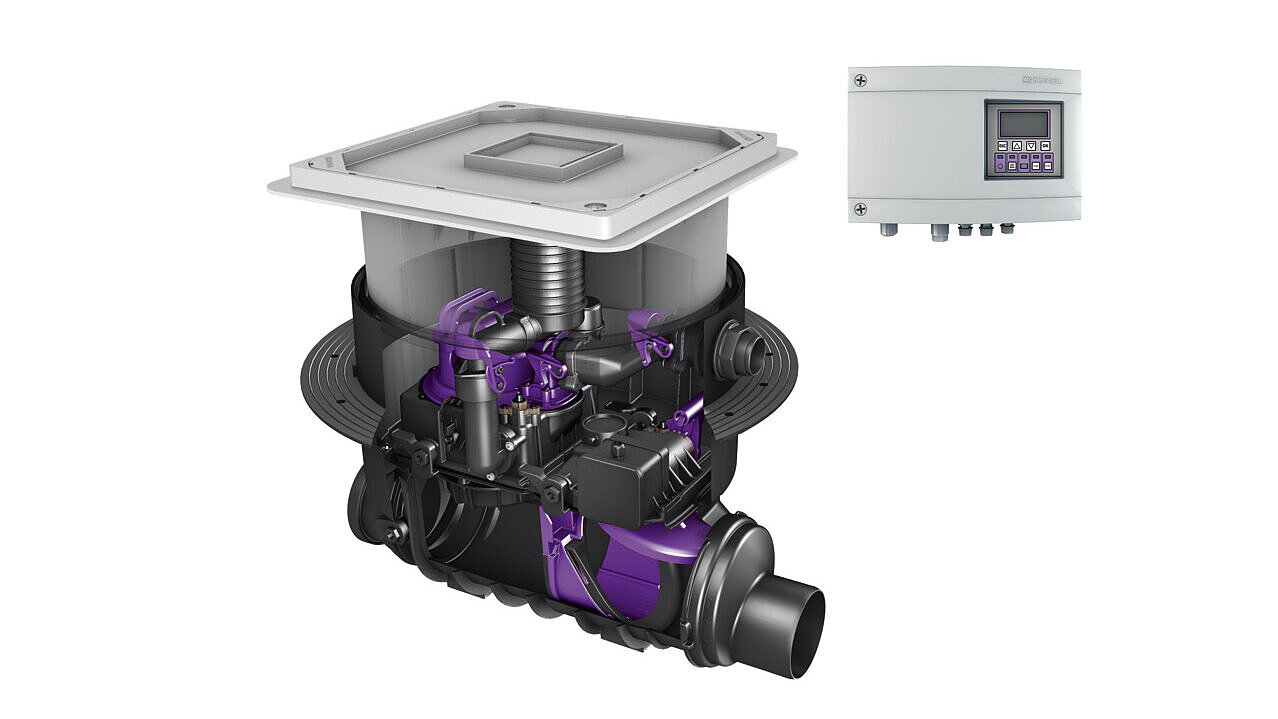

Floor slab installation
| Type of cover | Nominal size (DN) | Length | Width | Item no. | ||
|---|---|---|---|---|---|---|
21000S | Cover plate with slotted cover | - | 590 mm | 590 mm | 21000S | Show |
21100S | Cover plate with slotted cover | 100 | 642 mm | 590 mm | 21100S | Show |
21125S | Cover plate with slotted cover | 125 | 645 mm | 590 mm | 21125S | Show |
21150S | Cover plate with slotted cover | 150 | 656 mm | 590 mm | 21150S | Show |
21200S | Cover plate with slotted cover | 200 | 720 mm | 590 mm | 21200S | Show |
Shell Kit Ecolift backwater lifting station M
for Ecolift M Underfloor
| Type of cover | Item no. | ||
|---|---|---|---|
21000S-RBK | Cover plate with slotted cover | 21000S-RBK | Show |
21000X-RBK | tileable cover plate | 21000X-RBK | Show |
