Ferrofix upper section
Sys 125, grated cover 200x200 mm L 15

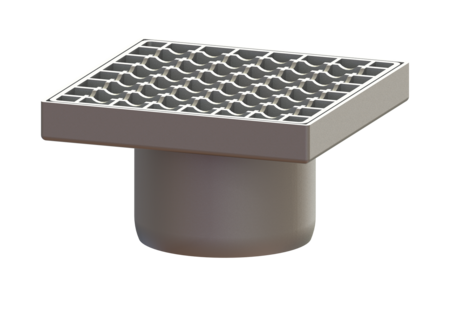

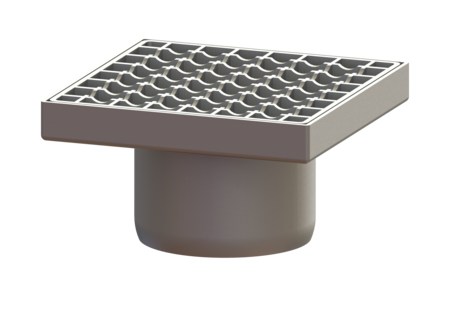

KESSEL Ferrofix upper section, length 200 mm, width 200 mm, type of cover Slotted cover, shape of upper section square, locking unlocked, design cover, Cover Stainless steel 14301
- Made of a particularly hygienic and mechanically highly resistant stainless steel
- Multiple combinations with suitable drain bodies
| Item no. | 54916 |
|---|---|
| GTIN | 4026092072455 |
| Price group | 70 |
Ferrofix upper section Sys 125, grated cover 200x200 mm L 15
Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. Variant System: 125 Waterproofing layer on the upper section: Connection flange General characteristics Standard: EN 1253-1 Dimensions Net weight: 1,92 kg Gross weight: 2,02 kg Height: 100 mm Packaging dimension: length: 200 mm Packaging dimension: width: 200 mm Packaging dimension: height: 175 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Height of cover: 28 mm Min. flooring height: 28 mm Surface: pickled Locking: unlocked Load class: L 15 (EN 1253-1) Rim width: 200 mm Rim length: 200 mm Max. flooring height: 67 mm Shape of upper section: square Upper section material: Stainless steel 14301 Mesh size: 23 x 23 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data |
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
