Extension section

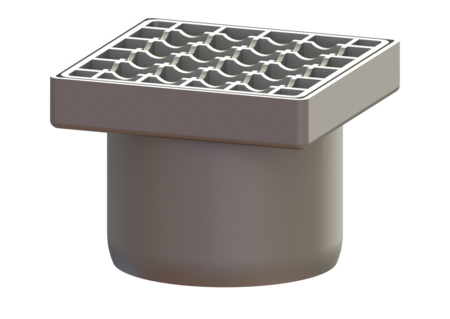

Sys 125, Slotted grating, 150 x 150 mm
Extension section Sys 125, Slotted grating, 150 x 150 mm
| Item no. | 54914 |
|---|---|
| GTIN | 4026092072448 |
| Price group | 70 |
Extension section Sys 125, Slotted grating, 150 x 150 mm
Extension section Sys 125, Slotted grating, 150 x 150 mm Variant System: 125 Note on installation depth: For load class M 125, on-site shimming necessary Waterproofing layer on the upper section: Connection flange Dimensions Net weight: 2,08 kg Gross weight: 2,17 kg Height: 100 mm Packaging dimension: length: 215 mm Packaging dimension: width: 190 mm Packaging dimension: height: 120 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Height of cover: 28 mm Min. flooring height: 28 mm Surface: pickled Locking: unlocked Load class: L 15 / M 125 (EN 1253-1) Rim width: 150 mm Rim length: 150 mm Max. flooring height: 77 mm Upper section material: Stainless steel 14301 Mesh size: 23 x 23 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data |
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
