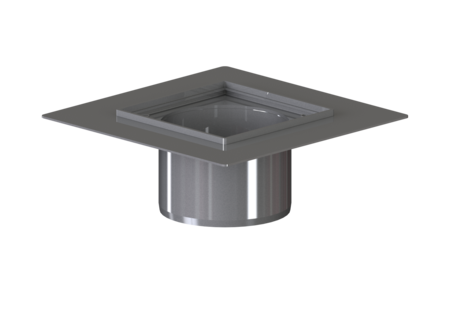

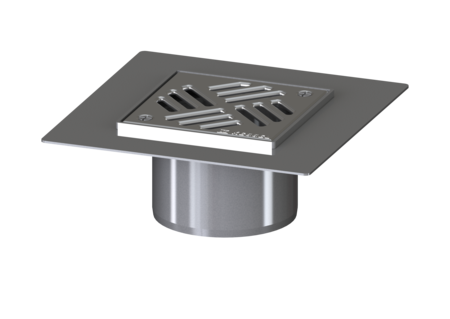

Ferrofix upper section

S125, Gl fl.,6 mm slot grat., 146x146 mm

54922
54922
PDF product data sheet

KESSEL Ferrofix upper section, surface Polished SST, length 246 mm, width 246 mm, type of cover Slotted cover, locking, waterproofing layer upper section by Adhesive flange (suitable for moisture barriers)

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
  • Multiple combinations with suitable drain bodies
Item no. 54922
GTIN 4026092112496
Price group 70

    Ferrofix upper section S125, Gl fl.,6 mm slot grat., 146x146 mm
    Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. The upper section is suitable for thin-layered floorings (e.g. epoxy resin) and has a circumferential adhesive joint edge (6 mm deep and 50 mm folded outwards). Variant System: 125 Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Dimensions Net weight: 1,75 kg Gross weight: 1,9 kg Length: 246 mm Width: 246 mm Height: 100 mm Packaging dimension: length: 365 mm Packaging dimension: width: 164 mm Packaging dimension: height: 210 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Height of cover: 6 mm Surface: Polished SST Load class: K 3 (EN 1253-1) Rim width: 146 mm Rim length: 146 mm Max. flooring height: 6 mm Shape of upper section: square Upper section material: Stainless steel 14301
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
