Practicus drain body

Press. fl., DN 100, Horizontal outlet

45119
45119
PDF product data sheet

KESSEL Practicus drain body, type of waterproofing, socket lateral, nominal size (DN) 100, odour trap included, drainage by Point drain, waterproofing layer upper section by

  • Hygiene: hygienic, absolutely corrosion-free and durable material
  • absolutely corrosion-free and durable material
Item no. 45119
GTIN 4026092033791
Price group 10

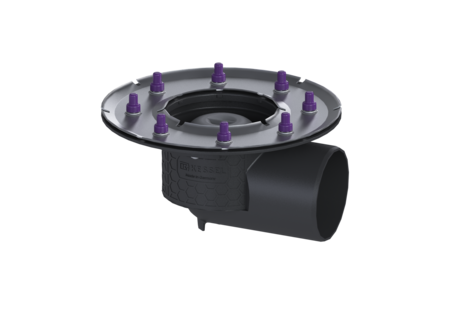

    Practicus drain body Press. fl., DN 100, Horizontal outlet
    In combination with an upper section, the Practicus polymer drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The drain meets particular sound insulation requirements in accordance with the measurements of the Fraunhofer Institute in Stuttgart. Variant System: 125 Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) Sealing water height: 50 mm General characteristics Nominal size (DN): 100 Outer diameter (OD): 110 mm Odour trap: included Sustainable: through the use of recycled material Dimensions Net weight: 1,83 kg Gross weight: 2,12 kg Diameter: 273 mm Height: 147 mm Packaging dimension: length: 280 mm Packaging dimension: width: 280 mm Packaging dimension: height: 260 mm Tank/drain body Number of outlets: 1 Connection inlet/outlet sockets: The outlet spigot is suitable for connection to SML pipes. Material of drain body: PP Socket version: lateral
      Title Item no.
    48176 Upper section Slotted cover, anti-slip, L 15 48176 Show
    48907 Variofix upper section Slotted cover, 304 SST, anti-slip, L 15 48907 Show
    59192 Ferrofix upper section Sys 125, for PVC, Hole patt cover, L 15 59192 Show
      Title Item no.
      Title Item no.
    48403 Extension section H: 140 mm, with glued flange 48403 Show
    48404 Extension section H: 147 mm, with pressure sealing flange 48404 Show
    48900 Extension section H: 120 mm, with glued flange 48900 Show
    48981 Membrane for System 125, Waterproof concrete 48981 Show
    48987 Extension section H: 136 mm, without inlet 48987 Show
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Show
      Title Item no.
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): PP
    • Socket version (stutzen_ausfuehrung): lateral
    • Odour trap (geruchsverschluss): included
