Shell Kit Minilift L Underfloor
tileable

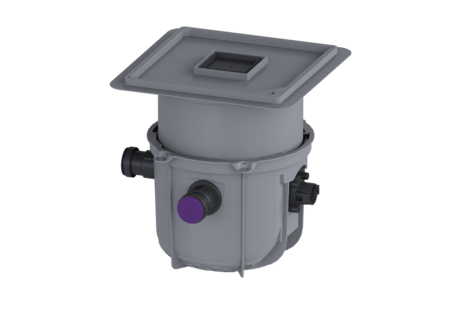

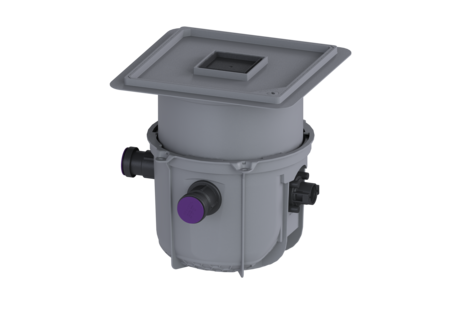

KESSEL Shell Kit Minilift L Underfloor tileable, wastewater without sewage, floor slab installation, with submersible pumps, type of cover tileable cover plate
| Item no. | 280570X-RBK |
|---|---|
| GTIN | 4026092106822 |
| Price group | 20 |
Shell Kit Minilift L Underfloor tileable
For combination with a KESSEL technology kit for creating a Minilift L small lifting station for wastewater without sewage. The ready to plug in small lifting station for wastewater without sewage is suitable for the disposal of wastewater from individual drainage sources. The submersible pump with float switch can be removed easily with the help of one-handed closures. The collection tank made of polymer (PE) has an open pump tank and is resistant to aggressive wastewater. The system for installation in the floor slab is pre-assembled for final installation on site. KESSEL shell kit consisting of: - With vertically adjustable upper section for continuous height and level compensation and integrated floor drain - Includes backflow preventer for the pressure pipe - Includes DN 50 connection socket for inlet and conduit pipe General characteristics Colour: grey Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: floor slab installation Dimensions Net weight: 7,17 kg Gross weight: 7,17 kg Installation depth: 330 - 460 mm Length: 460 mm Width: 380 mm Packaging dimension: length: 445 mm Packaging dimension: width: 445 mm Packaging dimension: height: 466 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Inlet nominal size (OD): 60 mm Inlet nominal size (DN): 50 Pumping volume: 7 l Coverage features Type of cover: tileable cover plate Cover material: Polymer Colour of cover: grey Width of cover: 366 mm Length of cover: 366 mm Locking: Lock & Lift Load class: K 3 (EN 1253-1)
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
![]() | Alarm unit with electronic probe | 20222 | Show |
![]() | Alarm unit with optical probe | 20223 | Show |
![]() | Alarm unit with optical probe 10 m | 20224 | Show |
![]() | Adapter DN 50/70 | 27126 | Show |
![]() | Adapter DN 100/70 | 27602 | Show |
![]() | Pressure pipe set 5 m pressure hose, DA 40 mm | 28040 | Show |
![]() | Adapter for pressure pipe connection, DN 32, PE | 28086 | Show |
![]() | Backflow preventer for plugging in, for DN 50 inlet | 28093 | Show |
![]() | Inlet socket DN 50, with seal, Threaded ring | 39005 | Show |
![]() | Inlet socket DN 70, with seal, Threaded ring | 39007 | Show |
![]() | Odour trap Multistop, System 125 | 48500 | Show |
![]() | Odour trap Megastop | 48550 | Show |
![]() | Hole saw for DN 50/70/100 | 500101 | Show |
![]() | Odour trap for The Ultraflat 79 | 680696 | Show |
![]() | Drain body for cover plate for odour trap 50 mm, black | 680795 | Show |
![]() | Drain body for cover plate for Multistop, black | 680796 | Show |
![]() | Drain body for cover plate for odour trap 50 mm, grey | 680797 | Show |
![]() | Drain body for cover plate for Multistop, grey | 680798 | Show |
![]() | Adapter DN 40/50 | 681111 | Show |
![]() | Potential-free contact Extension set for control units | 80074 | Show |
![]() | Cover plate surface water resistant, black 366x366mm | 830050 | Show |
![]() | Cover plate surface water resistant, tileable | 830052 | Show |
![]() | Extension section deeper installation, with flange | 830070 | Show |
![]() | Seal for pipe penetration, DN 50 | 850114 | Show |
![]() | Seal for pipe penetration, DN 70 | 850116 | Show |
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| Manuals |
- Cover material (abdeckung_material):
Polymer
- Installation situation (einbausituation):
floor slab installation
- Type of wastewater (abwasserart_de):
without sewage
- Type of cover (abdeckungsart): tileable cover plate
