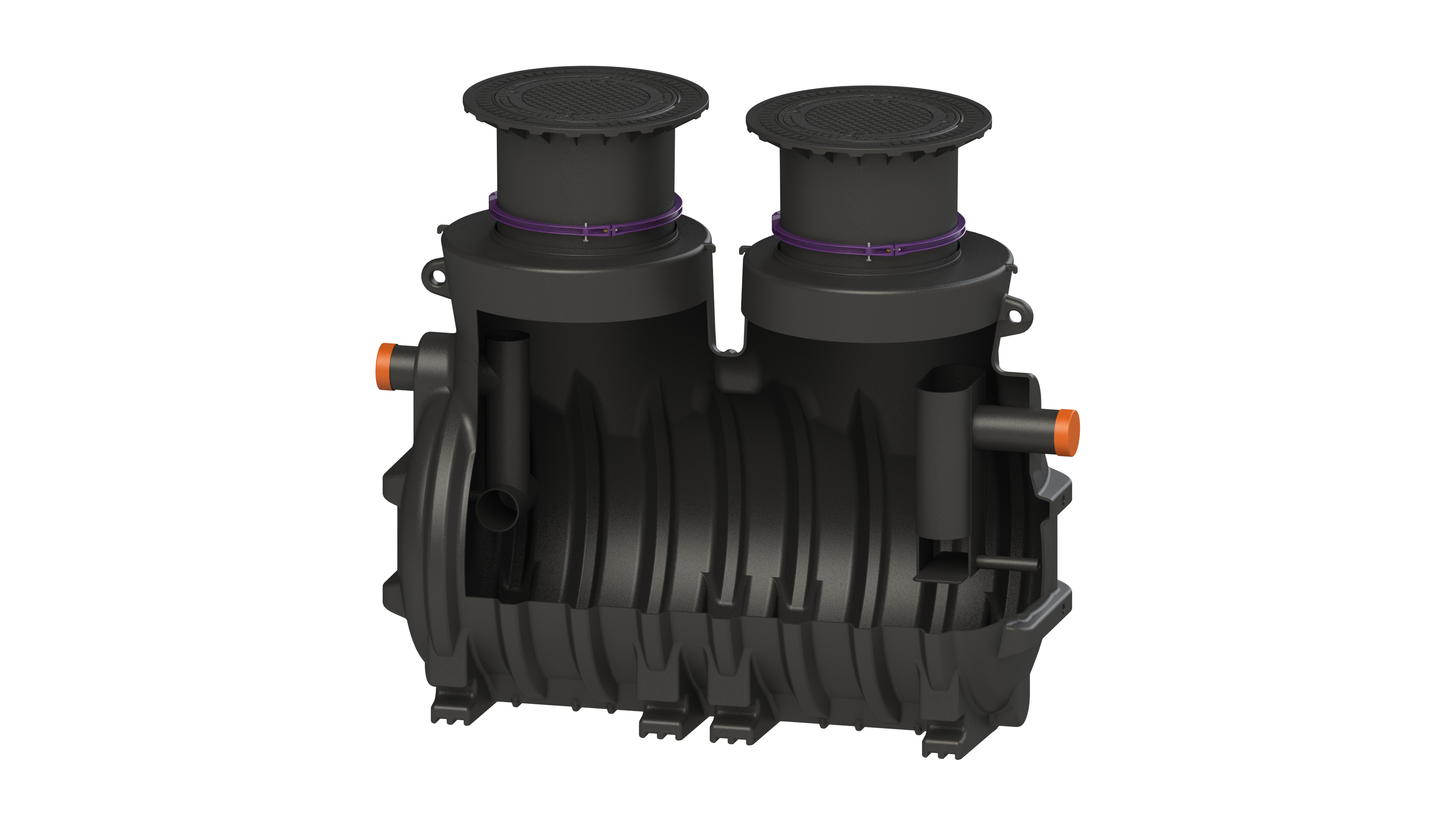

EasyClean ground Standard grease separator

The uncomplicated solution for underground installation

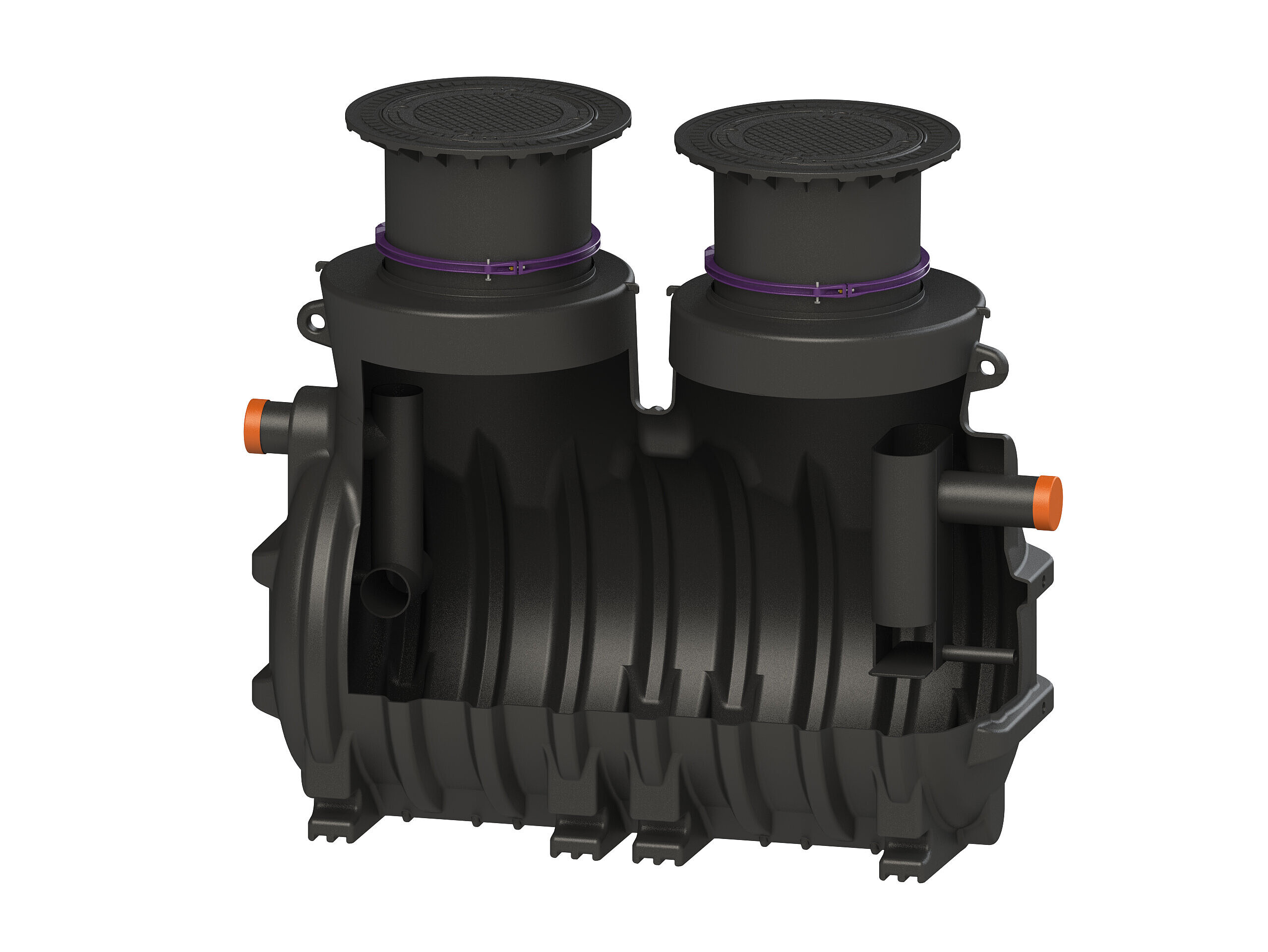

The grease separator EasyClean ground Standard is the basic version of the EasyClean ground series. The odour-tight domed covers of the grease separator have to be opened for emptying and cleaning. Extraction and rinsing of the grease separator take place manually. It is preferably cleaned with hot water through the maintenance openings.

The EasyClean ground Standard grease separator is available for load classes A/B and D as well as in nominal sizes NS 1 to NS 10, which are sufficient for most businesses such as restaurants and hotels. In addition, we also offer individual solutions for specific requirements and installation situations.

Advantages Article overview

EasyClean ground Standard grease separator in nominal size 4 with cover open during disposal.

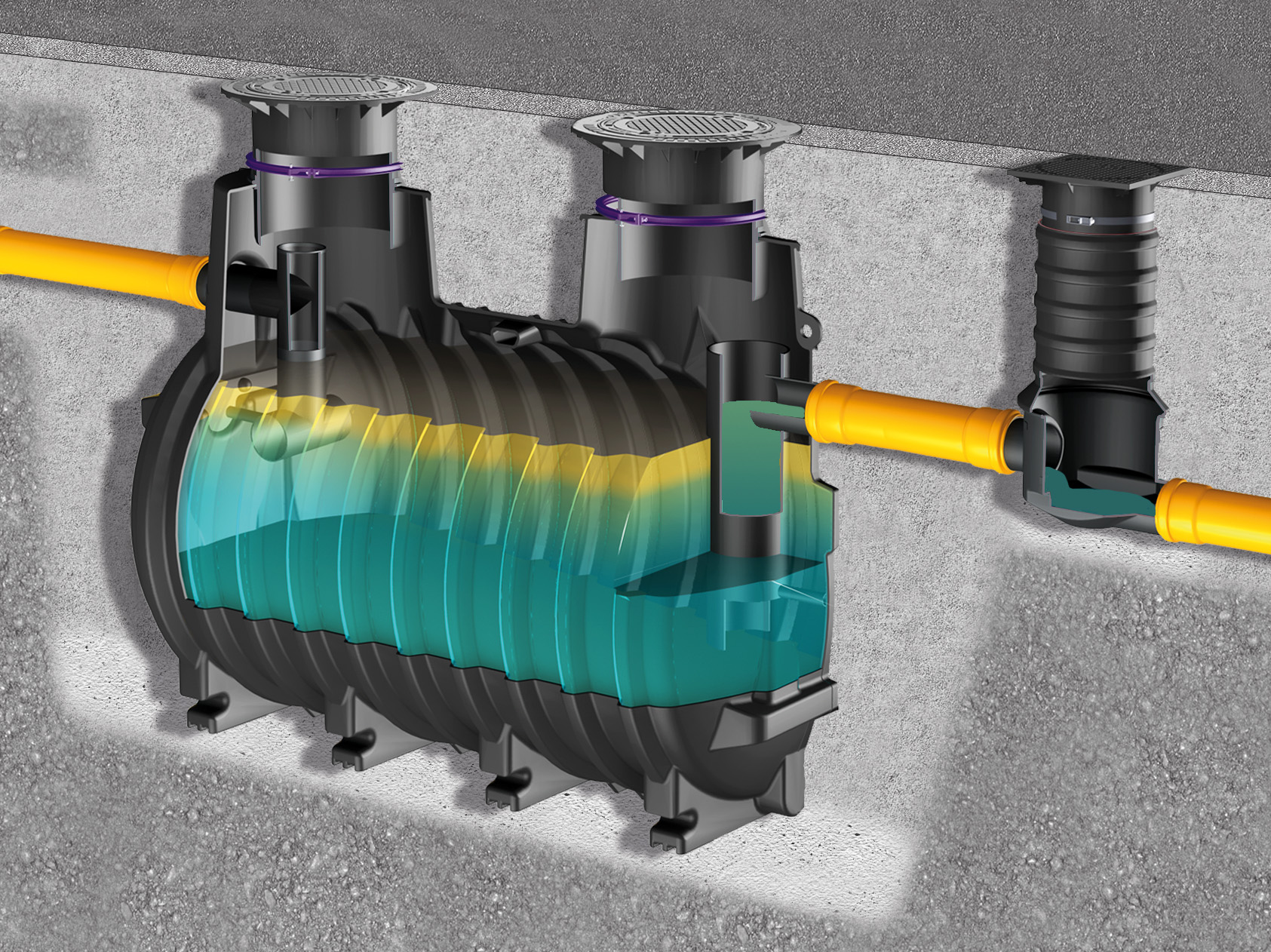

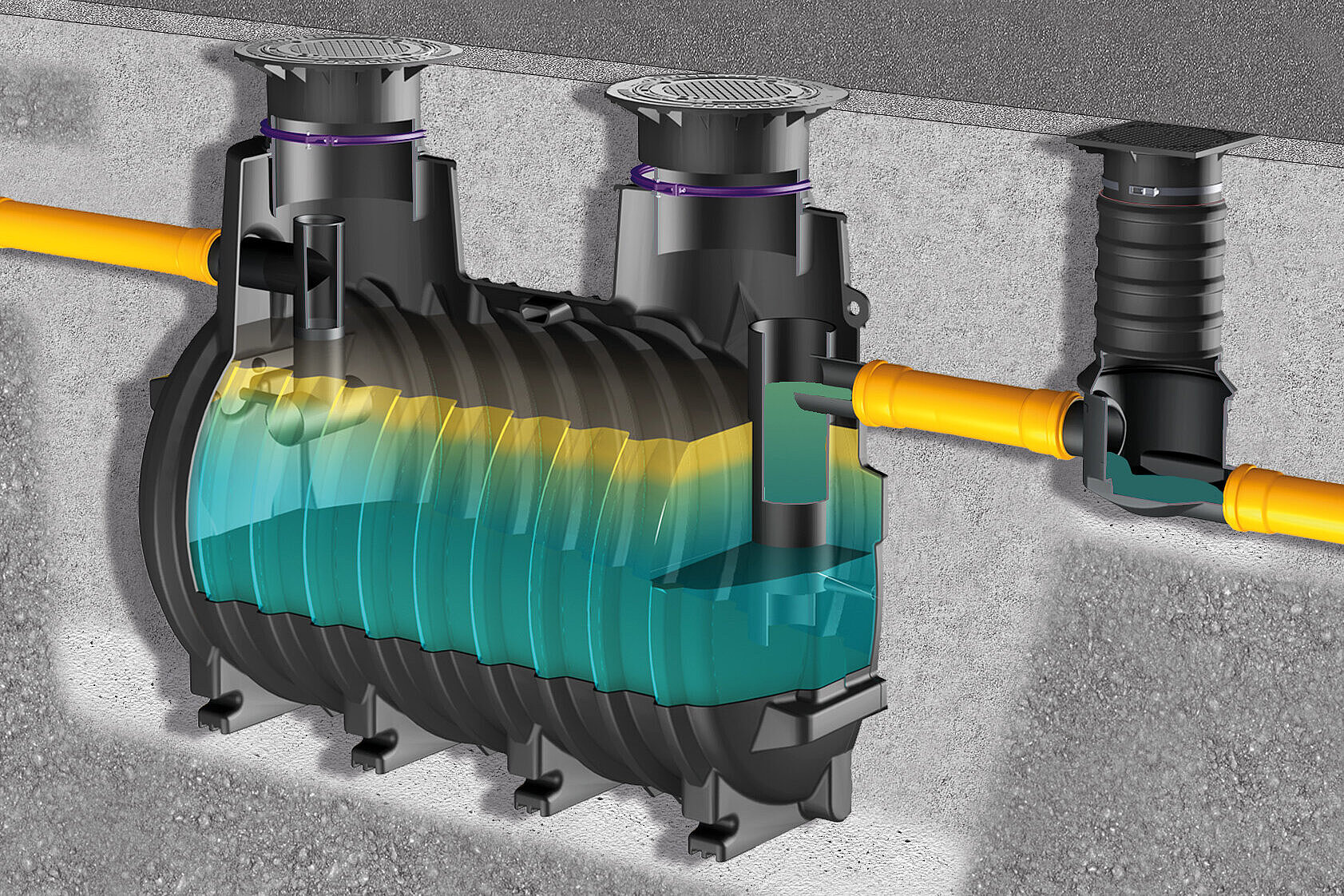

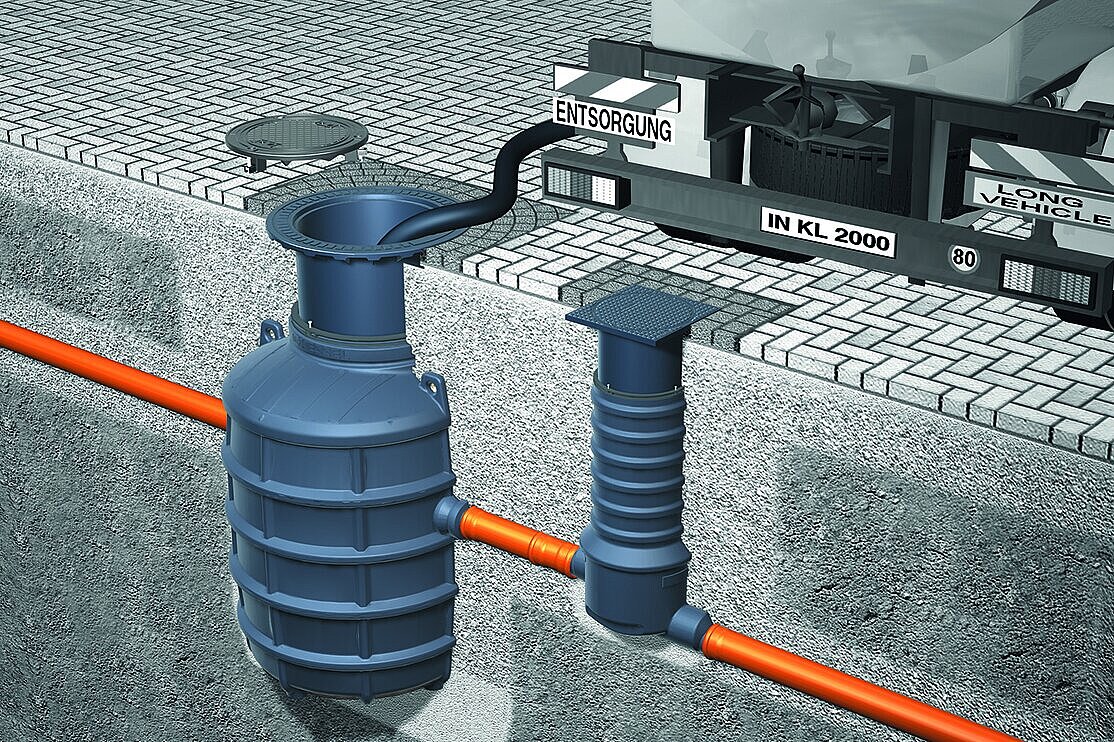

NS 15 grease separator with connected sampling chamber installed in the ground.

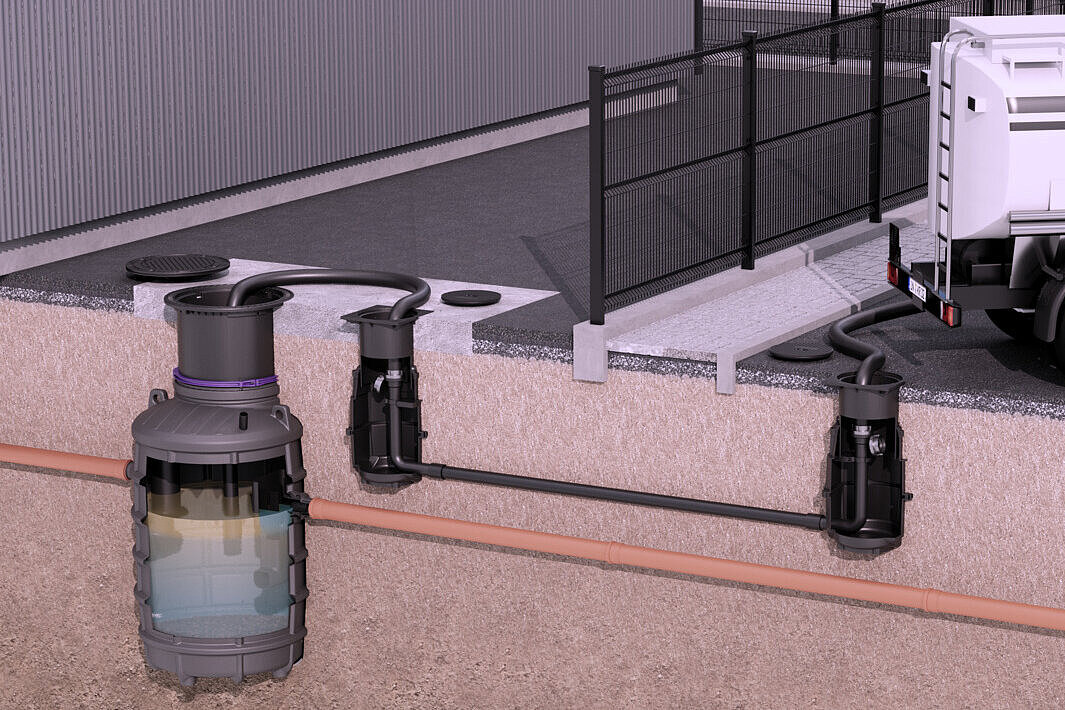

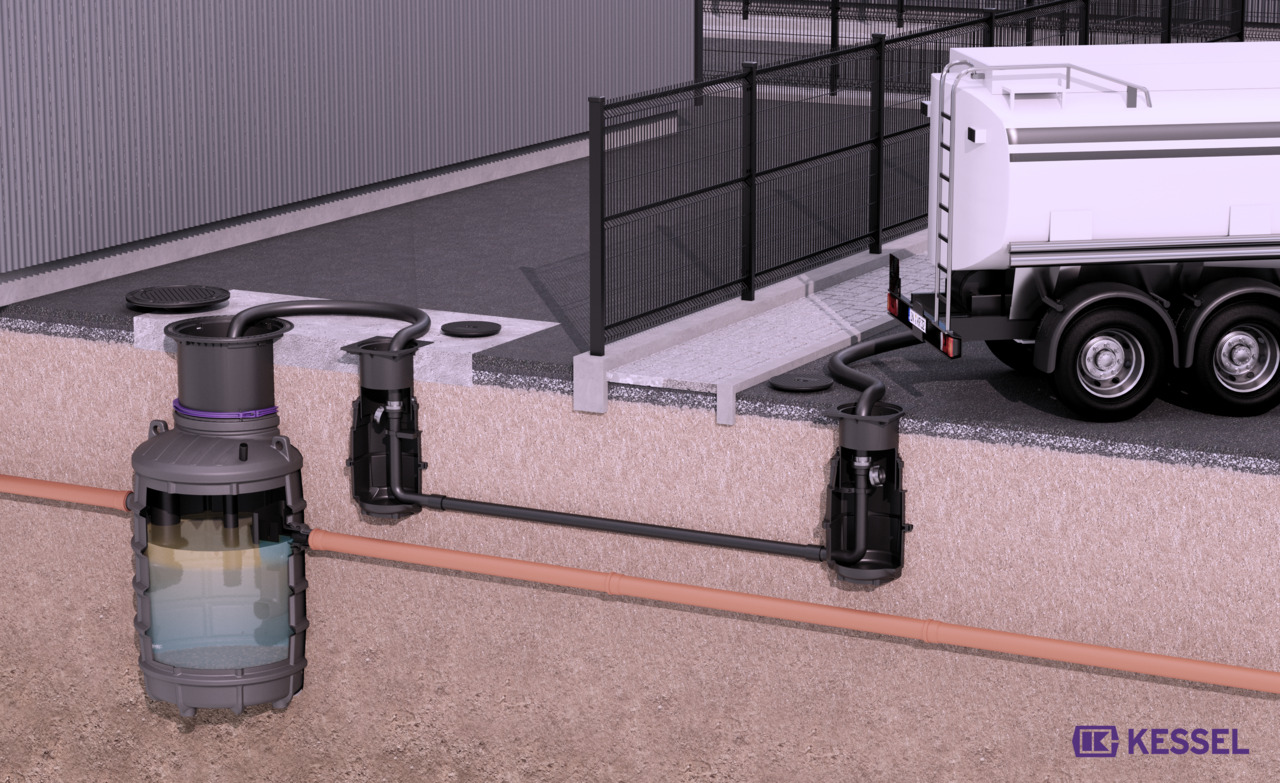

The use of a grease separator with a second disposal shaft is recommended wherever there are long disposal pipes or the disposal shaft is located in a public area.

Application possibilities

Grease separators for underground installation are used wherever installation inside a building is not possible or desired. The separator is then installed outside the building—for example, under traffic areas—to save space. For disposal, the cover of the separator must be opened and the contents pumped out using a suction hose.

Basic version

The EasyClean ground Standard is the basic version of our EasyClean ground grease separator family. It includes all the essential functions.

The KESSEL range includes further grease separators with other advantages.

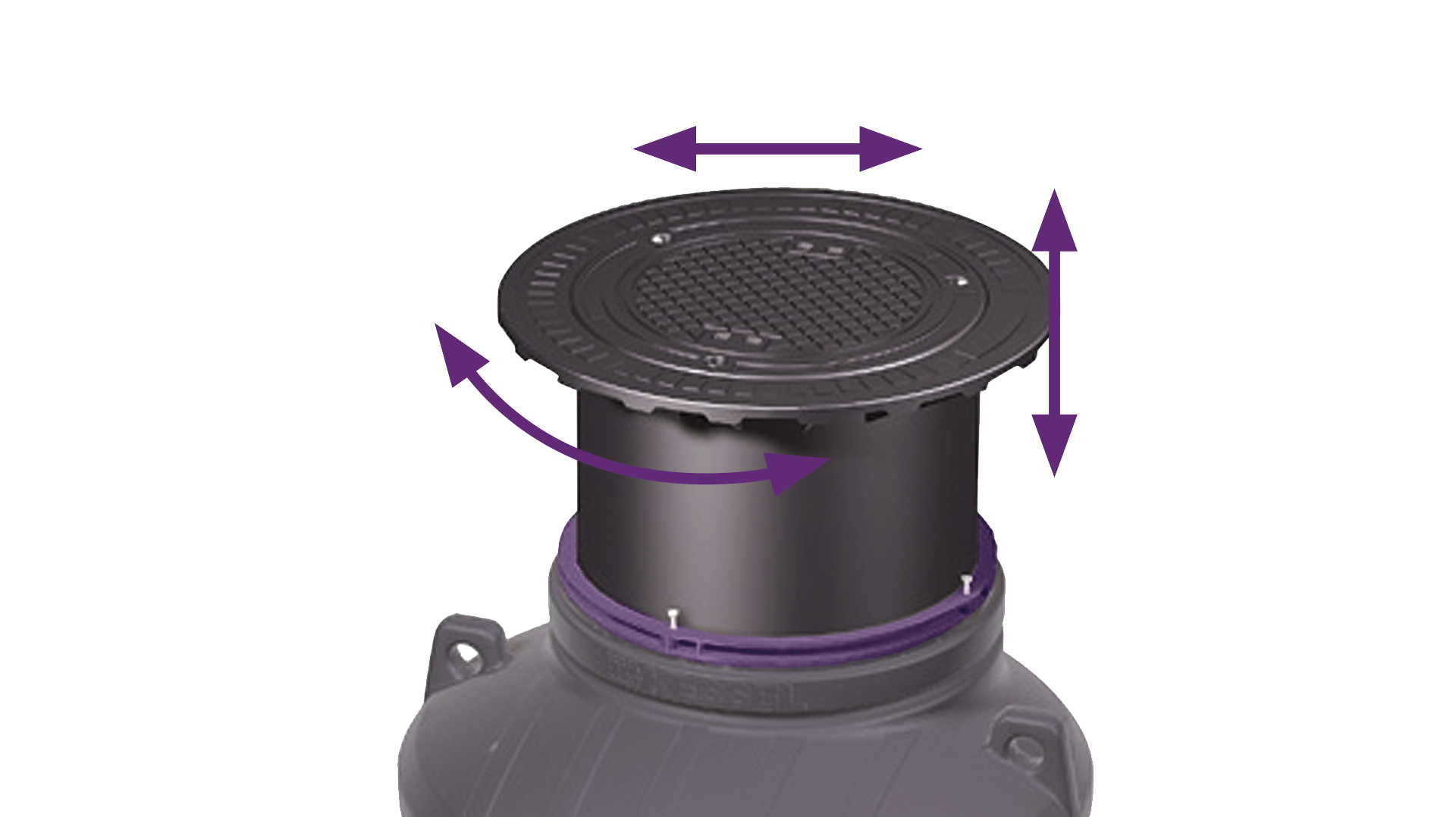

Variable upper section for easy installation of separators

Variable installation depths

Individual installation depths, continuous adaptation to the ground level and compensation for the ground covering settling are possible thanks to the telescopic polymer upper sections.

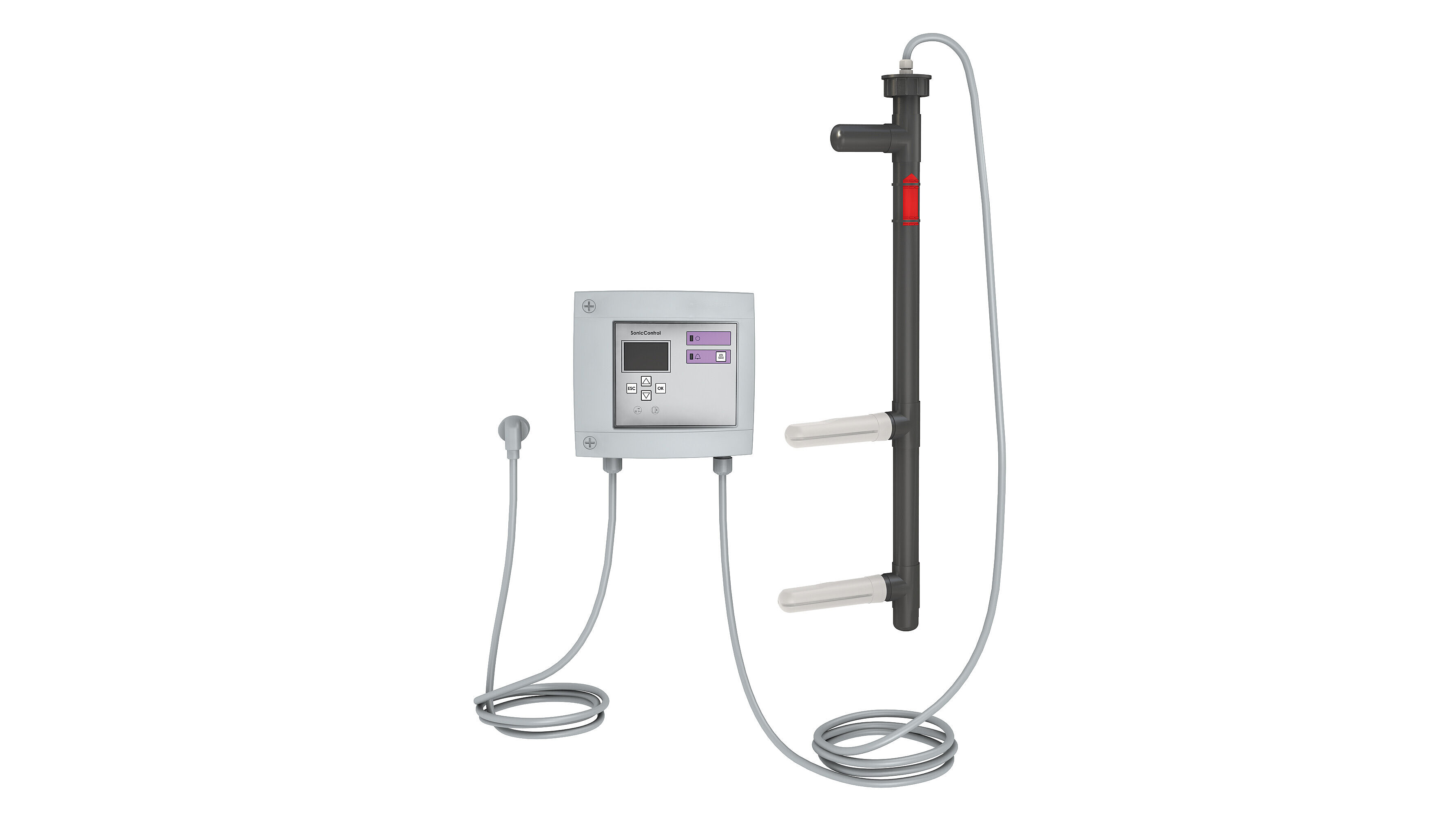

SonicControl

The SonicControl automatic layer thickness measuring device with ultrasound sensor precisely monitors the temperature and thickness of the grease layer in grease separators. Owners/operating companies can verify the actual quantity of grease produced to the relevant authorities and optimise the necessary disposal cycles outside of standard requirements.

More information

Polymer grease are durable and corrosion-free.

100 % corrosion-free – 20-year guarantee

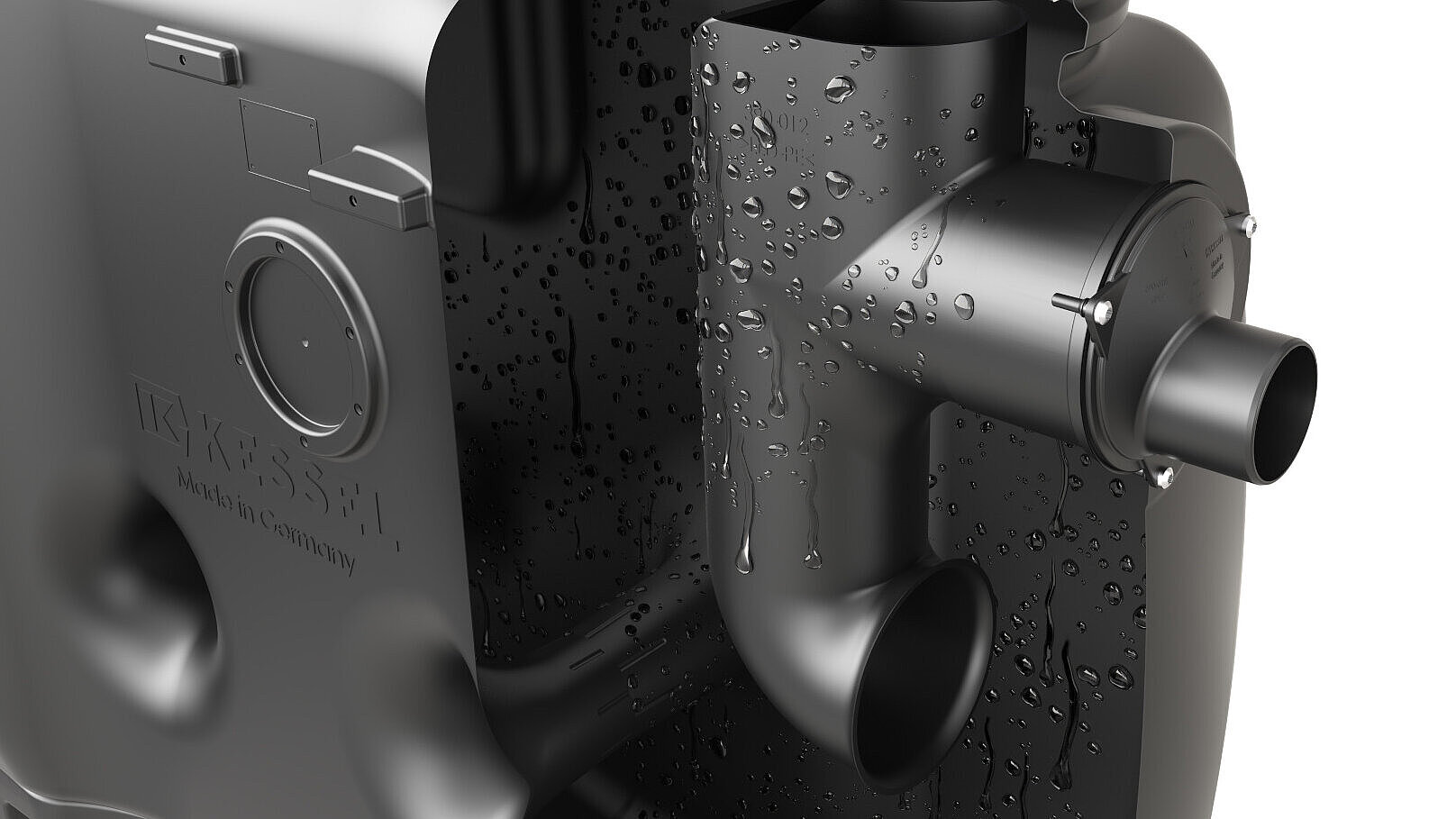

Our grease separators are made of polyethylene. That makes them resistant to aggressive fatty acids and they are therefore particularly durable. Trust in KESSEL quality: In addition to the statutory provision, we provide a 20-year warranty with regard to the leak tightness, fitness for purpose and structural stability of tanks and upper sections.

Important: Stricter limit values!

When grease separators are used, the wastewater at the outlet has a residual value of lipophilic materials of about 300 mg/L. If the municipalities specify a limit value below 300 mg/L, biological grease treatment with a Bifena unit is necessary.

BIFENA biological grease treatment
