Pump installation kit Retrofit L

Tronic, STZ2500-S1, level sensor

STZ2500-M
PDF product data sheet

KESSEL Pump installation kit Retrofit L Tronic, wastewater with sewage, installation in on-site collecting tank, with a submersible STZ 2500 pump, alarm generator with Level sensor, 400 V, delivery rate 21 m³/h

    Item no. STZ2500-M
    Price group 60

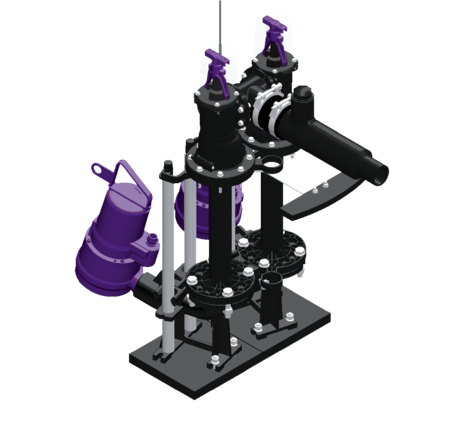

      Pump installation kit Retrofit L Tronic, STZ2500-S1, level sensor
      The pump installation kit for installation in existing collection tanks for faecal-free wastewater is equipped with two submersible pumps, two backflow preventers and two shut-off valves. The metal sliding rod is used to mount and secure the pumps. The station is optionally controlled by a user-friendly control unit, which can be integrated in the building management system via a potential-free contact. Alternatively, alarm and collective fault messages can be output via a GSM interface. Variant Type of system: Single unit Shut-off valve: yes Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Standard: EN 12050-2 Type of wastewater: with sewage Installation situation: installation in on-site collecting tank Delivery state: Modular set for assembly on site System type: Tronic Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Pumping device Pump: STZ 2500 Number of pumps: 1 Connection type: coded plug Operating voltage: 400 V Protection class: I Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 21 m³/h Max. pumping height: 33 m Speed: 2900 U/min Power P1: 2,5 kW Power P2: 1,9 kW Operating mode: S1 Type of pump connection cable: H07RN8-F 6G 1.5 mm² Impeller type: Macerator Length of mains cable for pump: 10 m Rated current: 4,4 A Control Control unit: Comfort Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (control unit): 3 x C 16 A
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      • Control unit (schaltgeraet): Comfort
      • Type of wastewater (abwasserart_de): with sewage
      • Alarm sensor (alarmgeber): Level sensor
      • Pump (pumpe): STZ 2500
      • Impeller type (laufrad_typ): Macerator
