Pump installation kit Retrofit L

Duo, GTK 1300, Level sensor

8744030
8744030
8744030
PDF product data sheet

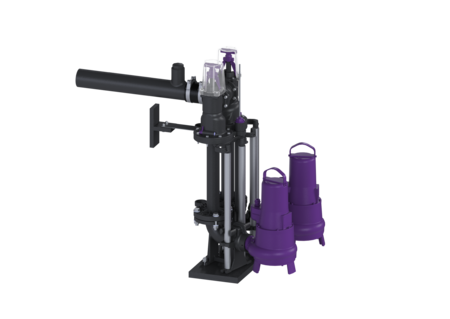

KESSEL Pump installation kit Retrofit L Duo, wastewater for wastewater with and without sewage, installation in on-site collecting tank, with 2 submersible GTK 1300 pumps, alarm generator with Level sensor, 400 V, delivery rate 57 m³/h

    Item no. 8744030
    GTIN 4026092103555
    Price group 60

      Pump installation kit Retrofit L Duo, GTK 1300, Level sensor
      The pump installation kit for installation in existing collection tanks for wastewater with and without sewage is equipped with two floodable pumps, two backwater preventers and two shut-off valves. The metal sliding rods are used to mount and secure the pumps. Control is by means of pressure control via a user-friendly control unit, which can optionally be integrated into the building management system via a potential-free contact or output alarm and collective fault messages via a GSM interface. Variant Type of system: duo pump Shut-off valve: yes Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: vertical (special version, on request), horizontal (standard version) General characteristics Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements) Type of wastewater: for wastewater with and without sewage Installation situation: installation in on-site collecting tank System type: Duo Dimensions Net weight: 117,6 kg Gross weight: 117,6 kg Packaging dimension: length: 1073 mm Packaging dimension: width: 605 mm Packaging dimension: height: 1062 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Pumping device Pump: GTK 1300 Number of pumps: 2 Connection type: coded plug Operating voltage: 400 V Mains frequency: 50 Hz Protection class: I Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 57 m³/h Max. pumping height: 12,4 m Speed: 2900 U/min Power P1: 1,3 kW Power P2: 1 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Single-vane impeller Type of fuse required (pump): 3 x C 16 A Length of mains cable for pump: 10 m Rated current: 2,5 A Control Control unit: Comfort Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      • Control unit (schaltgeraet): Comfort
      • Alarm sensor (alarmgeber): Level sensor
      • Pump (pumpe): GTK 1300
      • Type of wastewater (abwasserart_de): for wastewater with and without sewage
      • Impeller type (laufrad_typ): Single-vane impeller
