Pump installation kit Retrofit S

Duo,GTF 1000,submersible pressure switch

8744002
8744002
PDF product data sheet

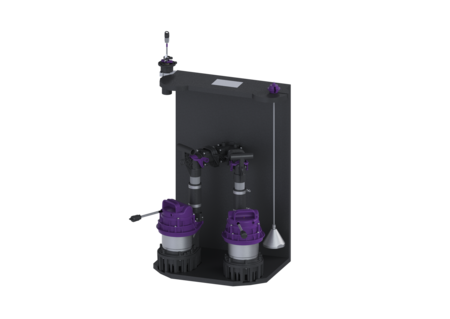

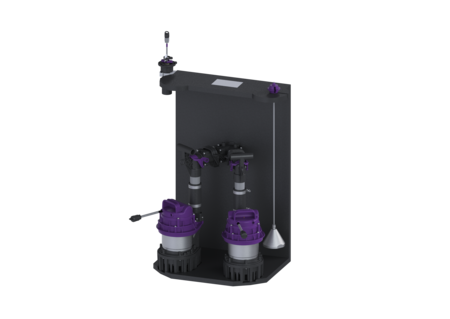

KESSEL Pump installation kit Retrofit S Duo, wastewater without sewage, installation in on-site collecting tank, with 2 submersible GTF 1000 pumps, alarm generator with optical probe, delivery rate 14,5 m³/h, Backflow preventer integrated

    • Quick installation thanks to pre-assembled components
    • Flexible and space-saving installation
    • Suitable for all common pressure pipes
    Item no. 8744002
    GTIN 4026092103326
    Price group 60

      Pump installation kit Retrofit S Duo,GTF 1000,submersible pressure switch
      The pump installation kit for installation in existing collection tanks for wastewater without sewage is equipped with two submersible pumps suitable for continuous operation, and two backflow preventers. The compact polymer (PU) bracket is used for the variable mounting of components in various application scenarios and to fasten the pumping system, even in confined spaces. All common types of pressure pipe can be connected using the 90° quick-release closure. Quick-release closures enable the integrated components to be removed easily. The components are pre-assembled for final assembly on site. Control is carried out by means of a level float via user-friendly 230V Connect Duo control unit that can optionally be integrated into the building management system through a potential-free contact. Variant Type of system: duo pump Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: installation in on-site collecting tank Delivery state: Modular set for assembly on site System type: Duo Dimensions Net weight: 18,5 kg Gross weight: 18,5 kg Packaging dimension: length: 654 mm Packaging dimension: width: 550 mm Packaging dimension: height: 600 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Pumping device Pump: GTF 1000 Number of pumps: 2 Weight, pump: 10 kg Connection type: coded plug Operating voltage: 230 V Mains frequency: 50 Hz Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 14,5 m³/h Max. pumping height: 10 m Speed: 2700 U/min Power P1: 1,27 kW Power P2: 0,73 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Type of fuse required (pump): C 16 A Length of mains cable for pump: 10 m Rated current: 5,6 A Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: Submersible pressure switch Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      • Control unit (schaltgeraet): Comfort
      • Type of wastewater (abwasserart_de): without sewage
      • Alarm sensor (alarmgeber): optical probe
      • Pump (pumpe): GTF 1000
      • Impeller type (laufrad_typ): Multi-vane impeller
