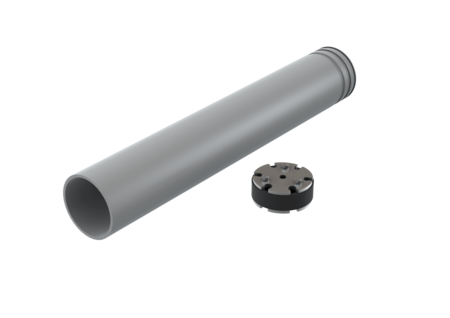

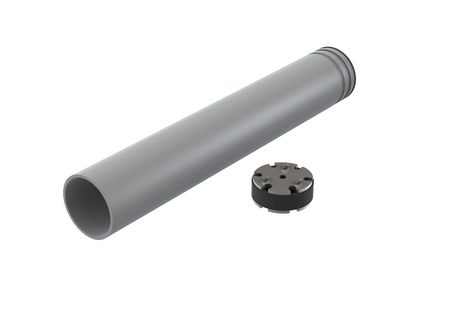

Sealing set for cable duct 230V
for sealing on the chamber side
Consisting of sleeve tube/receiving tube, including DN100 sealing insert for feed-through and waterproofing layer of all required cables for boiler system solutions with 230V mains voltage. Technical data "sleeve tube" - Dimensions: D110mm x 760mm - Insert on the shaft side in boiler pipe penetration DN100 - Further connection options for rigid or flexible casing pipes in DN 110 - To accommodate boiler sealing insert D100 Technical data sealing insert - Dimensions: D100 (for 99-104mm), L= 65mm - 7 cable openings: 4x Ø7mm, 1 x Ø8mm, 2x Ø10mm - Unused openings closed with blind plugs - Tightness up to 0.5 bar water pressure
| Item no. | 85403 |
|---|---|
| GTIN | 4026092102978 |
| Price group | 60 |
Sealing set for cable duct 230V for sealing on the chamber side
Consisting of sleeve tube/receiving tube, including DN100 sealing insert for feed-through and waterproofing layer of all required cables for boiler system solutions with 230V mains voltage. Technical data "sleeve tube" - Dimensions: D110mm x 760mm - Insert on the shaft side in boiler pipe penetration DN100 - Further connection options for rigid or flexible casing pipes in DN 110 - To accommodate boiler sealing insert D100 Technical data sealing insert - Dimensions: D100 (for 99-104mm), L= 65mm - 7 cable openings: 4x Ø7mm, 1 x Ø8mm, 2x Ø10mm - Unused openings closed with blind plugs - Tightness up to 0.5 bar water pressure Dimensions Net weight: 3,7 kg Gross weight: 3,7 kg Packaging dimension: length: 950 mm Packaging dimension: width: 265 mm Packaging dimension: height: 2 mm
