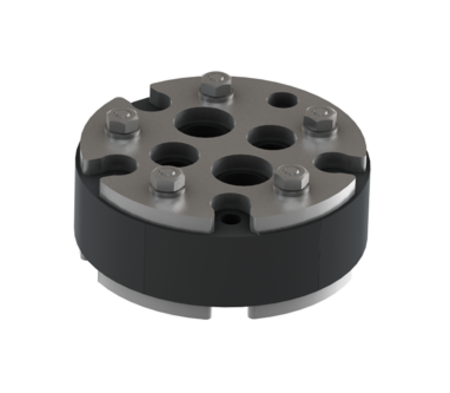

Sealing insert 400V
for systems in 400V
Sealing insert DN100 for penetrating and waterproofing the penetrations of all necessary cables for Kessel system solutions with 400 V mains voltage. Technical data: - Dimension: D100 (for 99-104 mm), L= 65 mm - 9 cable openings: 4x Ø7 mm, 1 x Ø8 mm, 2x Ø17 mm, 2x Ø10 mm - Unused openings sealed with blind plugs - tightness up to 0.5 bar water pressure
| Item no. | 681179 |
|---|---|
| GTIN | 4026092108482 |
| Price group | 90 |
Sealing insert 400V for systems in 400V
Sealing insert DN100 for penetrating and waterproofing the penetrations of all necessary cables for Kessel system solutions with 400 V mains voltage. Technical data: - Dimension: D100 (for 99-104 mm), L= 65 mm - 9 cable openings: 4x Ø7 mm, 1 x Ø8 mm, 2x Ø17 mm, 2x Ø10 mm - Unused openings sealed with blind plugs - tightness up to 0.5 bar water pressure Dimensions Net weight: 0,82 kg Gross weight: 1,18 kg Packaging dimension: length: 215 mm Packaging dimension: width: 100 mm Packaging dimension: height: 100 mm
