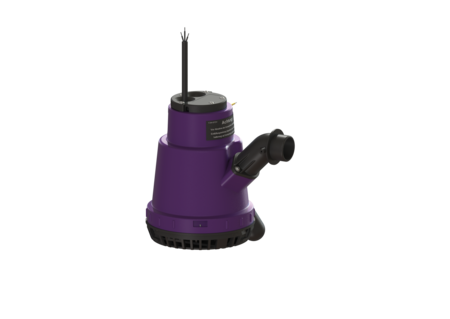

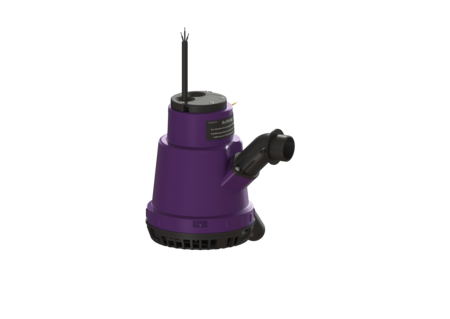

Replacement pump KTP 300

res., Minilift L, free-standing set-up

680954
680954
PDF product data sheet

Replacement pump resistant to salty media, wastewater from water softening systems and wastewater containing condensate from heating systems.

Item no. 680954
GTIN 4026092093818
Price group 90

    Replacement pump KTP 300 res., Minilift L, free-standing set-up
    Replacement pump resistant to salty media, wastewater from water softening systems and wastewater containing condensate from heating systems. Variant Pump control: Float switch General characteristics Material: Polymer Type of wastewater: without sewage Cable length: 5 m Dimensions Net weight: 4,48 kg Gross weight: 4,48 kg Length: 275 mm Width: 390 mm Height: 216 mm Packaging dimension: length: 281 mm Packaging dimension: width: 246 mm Packaging dimension: height: 273 mm Pumping device Pump: KTP 300 Number of pumps: 1 Weight, pump: 4,48 kg Connection type: Schuko (earthed contact) 2-pin Operating voltage: 230 V Mains frequency: 50 Hz Protection class: I Protection class (pump): IP 68 (3m) Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping height: 6 m Speed: 2800 U/min Power P1: 0,34 kW Power P2: 0,21 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Type of fuse required (pump): C 16 A Length of mains cable for pump: 5 m Rated current: 1,6 A Control Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Material (material): Polymer
    • Type of wastewater (abwasserart_de): without sewage
