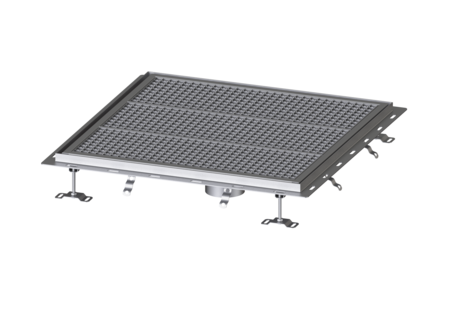

Ferrofix floor tray
tile connection angle profile, 800x800mm
KESSEL Ferrofix floor tray, nominal size (DN) 125, length 800 mm, width 800 mm, type of cover Slotted cover, socket, waterproofing layer upper section by Tile connection angle, outside diameter (OD) 125 mm
- The channel profile is suitable for installation situations with high thermal loads
- Made of particularly a hygienic and mechanically highly resistant stainless steel
- Variably combinable with suitable drain bodies
| Item no. | 6380800 |
|---|---|
| GTIN | 4026092099469 |
| Price group | 80 |
Ferrofix floor tray tile connection angle profile, 800x800mm
The Ferrofix floor tray made of stainless steel with a material thickness of 2.0 mm (pickled in the immersion bath) is equipped with polished visible ridges, longitudinal and transverse slopes, feet for height adjustment and stainless steel outlet nozzles. The channel profile is suitable for installation situations with high thermal loads. The tile connection angle profile protects against tile breakage at the edge. Variant Waterproofing layer on the upper section: Tile connection angle General characteristics Nominal size (DN): 125 Outer diameter (OD): 125 mm Dimensions Length: 800 mm Width: 800 mm Height: 60 mm Coverage features Type of cover: Slotted cover Colour of cover: silver Locking: placed Load class: L 15 (EN 1253-1) Slip resistance class: R12 according to DIN 51130; C according to DIN 51097 Upper section material: Stainless steel 14301
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Nominal size (DN) (nennweite):
125
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): Slotted cover
- Length (laenge): 800 mm
- Width (breite): 800 mm
- Load class (belastungsklasse): L 15 (EN 1253-1)
- (oberflaeche):
