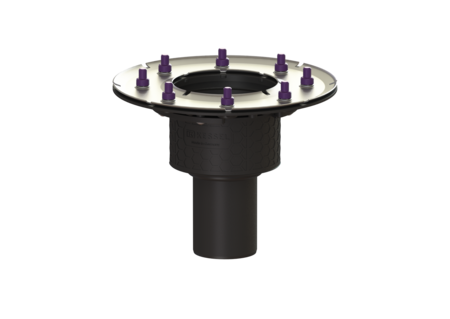

Ecoguss drain body

Press. fl., DN 70, vertical, without OT

48879
48879
PDF product data sheet

KESSEL Ecoguss drain body, nominal size (DN) 70, socket vertical, drainage by Point drain, odour trap, waterproofing layer drain body by Press sealing flange (suitable for creating watertight seals)

  • High-tech Ecoguss composite material
  • Highest fire protection standards
  • Scientifically confirmed sound protection effect
Item no. 48879
GTIN 4026092038208
Price group 40

    Ecoguss drain body Press. fl., DN 70, vertical, without OT
    The Ecoguss drain body, in combination with an upper section made of stainless steel, Ecoguss and recycled polymer, is used for point drainage and is equipped with a removable odour trap and a construction period protection cover. The recyclable composite material Ecoguss fulfils the highest sound insulation requirements, is permanently resistant to 350 aggressive media according to the resistance list, is temperature-resistant and has a permanently corrosion-free surface. It can be flame-treated for short periods from 100 to 400 degrees Celsius. The glued flange with stainless steel bolts and screws is used for clamping or welding on bitumen and polymer bitumen sheets as well as polymer and elastomer waterproofing sheets. Only waterproofing sheets tested by the manufacturer may be used for waterproofing layers. The outlet spigot is suitable for connection to SML cast iron pipes. With connection option for equipotential bonding. Variant System: 125 Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) Sealing water height: 50 mm General characteristics Standard: EN 1253-2 Nominal size (DN): 70 Outer diameter (OD): 78 mm Approval: Z-19.53-2414,Z-19.53-2414_V,Z-19.17-1719,Z-19.17-1719_V Dimensions Net weight: 2,01 kg Gross weight: 2,3 kg Diameter: 273 mm Height: 217 mm Packaging dimension: length: 280 mm Packaging dimension: width: 280 mm Packaging dimension: height: 260 mm Tank/drain body Number of outlets: 1 Material of drain body: Ecoguss resistant Socket version: vertical
      Title Item no.
    48502 Parking deck drain, Ecoguss DN 125, square, Connection polymer pipe 48502 Show
    48504 Parking deck drain, Ecoguss DN 125, round, Connection polymer pipe 48504 Show
    59400 Ferrofix upper section Sys 125, Ladd grt, Class D 59400 Show
      Title Item no.
      Title Item no.
    48991 Quick-Fit pipe penetration seal for core drillholes, w/o fire protection 48991 Show
      Title Item no.
    • Nominal size (DN) (nennweite): 70
    • Socket version (stutzen_ausfuehrung): vertical
    • Odour trap (geruchsverschluss):
