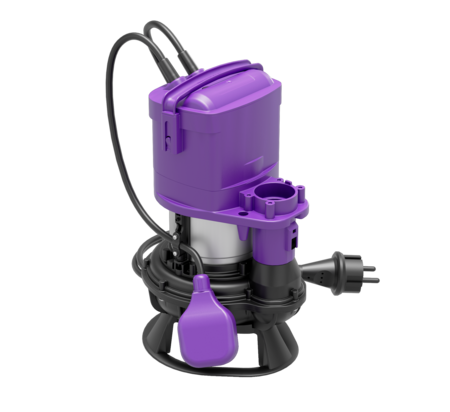

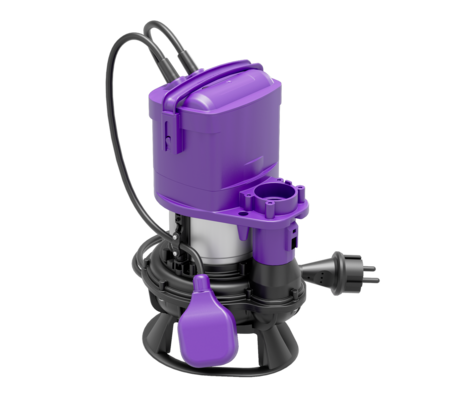

Submers. pump Aquadive GTF 1700
resitant, with float switch, 10 m, 230 V
KESSEL Submers. pump Aquadive GTF 1700, pump control by Float switch, coded plug, operating mode S3 - 50 %, pumping height 13 m, Resistant to waste water containing salt, softener and condensate
| Item no. | 28882C |
|---|---|
| GTIN | 4026092113684 |
| Price group | 20 |
Submers. pump Aquadive GTF 1700 resitant, with float switch, 10 m, 230 V
Variant Resistant: Resistant to waste water containing salt, softener and condensate Pump control: Float switch General characteristics Material: Polymer, Stainless steel Standard: EN 12050-2 Type of wastewater: without sewage Cable length: 10 m Dimensions Length: 240 mm Width: 200 mm Height: 377 mm Tank/drain body Pressure pipe connection: R 1 ¼ " Pumping device Pump: GTF 1700 Weight, pump: 13,9 kg Connection type: coded plug Operating voltage: 230 V Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping height: 13 m Speed: 2850 U/min Power P1: 1,6 kW Power P2: 1 kW Operating mode: S3 - 50 % Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 30 mm Type of fuse required (pump): C 16 A Length of mains cable for pump: 10 m Rated current: 7,3 A Control Operating voltage: 230 V Connection type: coded plug Mains frequency: 50 Hz
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Type of wastewater (abwasserart_de):
without sewage
- Impeller type (laufrad_typ): Multi-vane impeller
- Operating voltage (betriebsspannung): 230 V
- (niveauerfassung_art):
- Resistant (resistant): Resistant to waste water containing salt, softener and condensate
