Shut-off valve
DN 80, Polymer, vertical
KESSEL Shut-off valve DN 80, Polymer, vertical, Polymer
| Item no. | 28715 |
|---|---|
| GTIN | 4026092072820 |
| Price group | 20 |

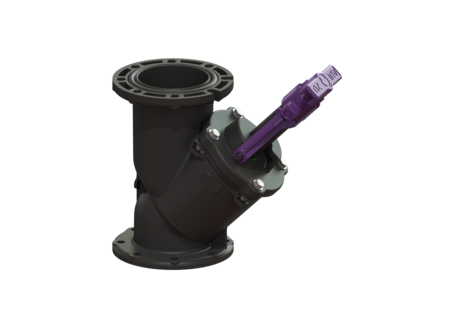

Shut-off valve DN 80, Polymer, vertical
Shut-off valve with vertical pressure pipe connection for the pressure pipe of lifting stations with plastic fitting, including seal and screws. A flange connection or flange adapter must be used for connection to the pressure pipe. General characteristics Colour: black Material: Polymer Nominal size (DN): 80 Outer diameter (OD): 90 mm Dimensions Net weight: 1,07 kg Gross weight: 1,23 kg Pitch diametre: 115 mm Width: 130 mm Height: 210 mm Packaging dimension: length: 247 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| CAD Data |
- Nominal size (DN) (nennweite):
80
- Material (material):
Polymer
