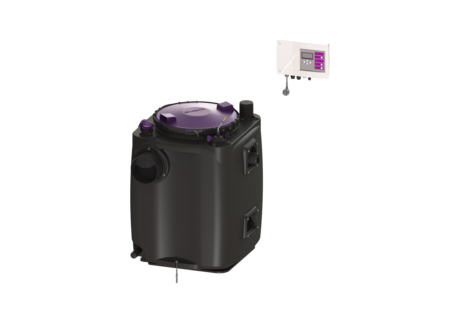

Lifting station Aqualift 200

Duo, GTF1250, Free-standing set-up, res.

28518C
28518C
PDF product data sheet

KESSEL Lifting station Aqualift 200 Duo, wastewater without sewage, coded plug, pump control by Control unit, control unit Comfort, with 2 submersible GTF 1250 resistant pumps, operating mode S1

  • Easy tool-free maintenance
  • Tank made of PE, resistant to aggressive wastewater
  • Including backflow preventer for the pressure pipe
Item no. 28518C
GTIN 4026092113059
Price group 20

Lifting station Aqualift 200 Duo, GTF1250, Free-standing set-up, res.
The ready to plug in lifting station for faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. Variant Type of system: duo pump Resistant: Resistant to waste water containing salt, softener and condensate Pump control: Control unit Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: free-standing installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Duo Tightness: odour-tight Dimensions Length: 670 mm Width: 655 mm Height: 815 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Inlet nominal size (DN): 100 Pumping volume: 100 l Tank volume: 220,00 l Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Pumping device Pump: GTF 1250 resistant Number of pumps: 2 Weight, pump: 10 kg Connection type: coded plug Operating voltage: 230 V Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 20 m³/h Max. pumping height: 11 m Speed: 2700 U/min Power P1: 1,3 kW Power P2: 0,8 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 30 mm Length of mains cable for pump: 5 m Rated current: 5,4 A Control Control unit: Comfort Control unit function: With alarm message Motor protection switch: yes Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Type of fuse required (control unit): C 16 A
  Title Item no.
  Title Item no.
  Title Item no.
20162 Remote signal generator 20 m cable, 2x0.75 q 20162 Show
28016 Retrofit kit Alarm float switch 28016 Show
500100 Hole saw for DN 100/125/150 500100 Show
500101 Hole saw for DN 50/70/100 500101 Show
80072 Potential-free contact Additio. circuit board for control units 80072 Show
80889 Cable accessories Extension for probe 80889 Show
80891 Cable accessories Extension for pump 80891 Show
850114 Seal for pipe penetration, DN 50 850114 Show
850116 Seal for pipe penetration, DN 70 850116 Show
850117 Seal for pipe penetration, DN 100 850117 Show
850118 Seal for pipe penetration, DN 125 850118 Show
850119 Seal for pipe penetration, DN 150 850119 Show
  Title Item no.
  • Control unit (schaltgeraet): Comfort
  • Cover material (abdeckung_material): Polymer
  • Installation situation (einbausituation): free-standing installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
