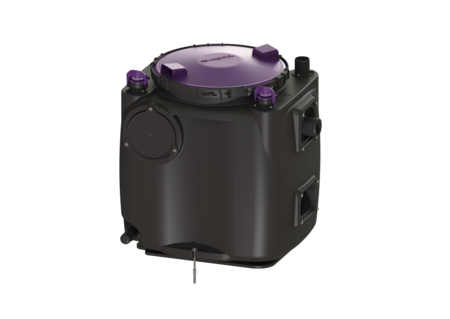

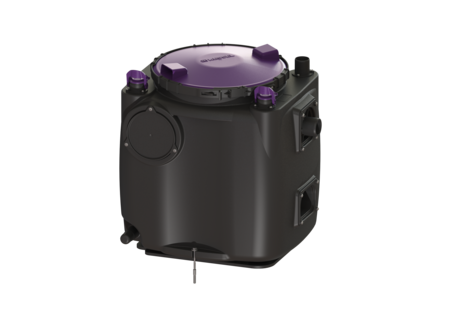

Lifting station Aqualift 100

Mono, GTF1250, Free-stand. set-up, res.

28512C
28512C
PDF product data sheet

KESSEL Lifting station Aqualift 100 Mono, wastewater without sewage, Schuko (earthed contact) 2-pin, pump control by Float switch, with a submersible GTF 1250 resistant pump, operating mode S3 - 50 %

  • Easy tool-free maintenance
  • Tank made of PE, resistant to aggressive wastewater
  • Including backflow preventer for the pressure pipe
Item no. 28512C
GTIN 4026092112991
Price group 20

Lifting station Aqualift 100 Mono, GTF1250, Free-stand. set-up, res.
The ready to plug in lifting station for faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. Variant Type of system: Single unit Resistant: Resistant to waste water containing salt, softener and condensate Pump control: Float switch Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: free-standing installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Mono Tightness: odour-tight Dimensions Net weight: 31,95 kg Gross weight: 31,95 kg Length: 670 mm Width: 530 mm Height: 650 mm Packaging dimension: length: 700 mm Packaging dimension: width: 800 mm Packaging dimension: height: 779 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Inlet nominal size (DN): 100 Pumping volume: 25 l Tank volume: 120,00 l Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Pumping device Pump: GTF 1250 resistant Number of pumps: 1 Weight, pump: 10 kg Connection type: Schuko (earthed contact) 2-pin Operating voltage: 230 V Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 20 m³/h Max. pumping height: 11 m Speed: 2700 U/min Power P1: 1,3 kW Power P2: 0,8 kW Operating mode: S3 - 50 % Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Type of fuse required (pump): C 16 A Length of mains cable for pump: 5 m Rated current: 5,4 A Control Motor protection switch: yes Level measurement instrument: Float switch Type of level measurement: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin
  Title Item no.
  Title Item no.
80201 Commissioning Lifting station Aqualift S 80201 Show
80301 Maintenance Lifting station Aqualift S 80301 Show
  Title Item no.
20222 Basic alarm unit with electronic probe 20222 Show
20223 Basic alarm unit with optical probe 20223 Show
20224 Basic alarm unit with optical probe 10 m 20224 Show
500100 Hole saw for DN 100/125/150 500100 Show
500101 Hole saw for DN 50/70/100 500101 Show
80074 Potential-free contact Extension set for control units Basic 80074 Show
80889 Cable accessories Extension for probe 80889 Show
80891 Cable accessories Extension for pump 80891 Show
850114 Seal for pipe penetration, DN 50 850114 Show
850116 Seal for pipe penetration, DN 70 850116 Show
850117 Seal for pipe penetration, DN 100 850117 Show
850118 Seal for pipe penetration, DN 125 850118 Show
850119 Seal for pipe penetration, DN 150 850119 Show
  Title Item no.
  • Cover material (abdeckung_material): Polymer
  • Installation situation (einbausituation): free-standing installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
