Upper section

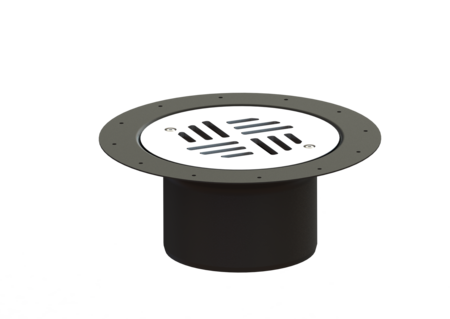

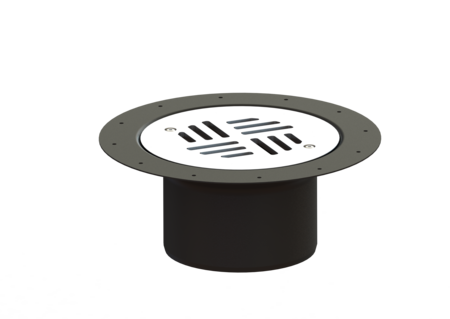

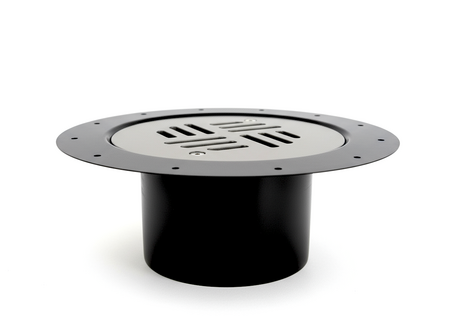

Sys 100, Slotted cover, stainl. st. V2A
KESSEL Upper section, height 83 mm, length 200 mm, width 200 mm, locking placed, design cover
- Different covers selectable
- Stainless steel covers
| Item no. | 27200 |
|---|---|
| GTIN | 4026092112786 |
Upper section Sys 100, Slotted cover, stainl. st. V2A
Used in combination with a drain body of the KESSEL modular system 100, the upper section is suitable for indoor point drainage. Variant System: 100 Dimensions Vertical adjustment: 25 - 65 mm Net weight: 0,56 kg Gross weight: 0,68 kg Diameter: 141 mm Vertically adjustable: yes Type of height adjustability: vertically adjustable upper section Length: 200 mm Width: 200 mm Height: 83 mm Coverage features Cover material: Stainless steel 14301 Colour of cover: grey Locking: placed Load class: K 3 (EN 1253-1) Rim width: 200 mm Rim length: 200 mm Shape of upper section: round Upper section material: PA+PVC
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data | |
| Test Reports and Certificates |
- Cover material (abdeckung_material):
Stainless steel 14301
