Cleanout

Sys 100, ABS, Cover 304 SST, screw, L15

27196G
PDF product data sheet

KESSEL Ferrofix cleanout S100, surface Polished SST, length 150 mm, width 150 mm, type of cover closed cover plate, locking screwed, frame material Stainless steel 14301, Cover Stainless steel 14301

Item no. 27196G
GTIN 4026092054963
Price group 70

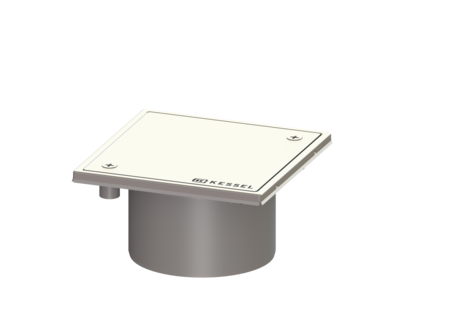

    Cleanout Sys 100, ABS, Cover 304 SST, screw, L15
    The cleanout, made of polymer with grating and frame made of stainless steel, serves as an upper section for direct connection on pipes and is equipped with a closed, screwed cover plate. Variant System: 100 Dimensions Net weight: 0,72 kg Gross weight: 0,79 kg Height: 93 mm Packaging dimension: length: 150 mm Packaging dimension: width: 150 mm Packaging dimension: height: 80 mm Coverage features Type of cover: closed cover plate Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 17 mm Surface: Polished SST Frame material: Stainless steel 14301 Locking: screwed Load class: L 15 (EN 1253-1) Rim width: 150 mm Rim length: 150 mm Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    CAD Data
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • Type of cover (abdeckungsart): closed cover plate
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • Locking (verriegelung): screwed
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck):
