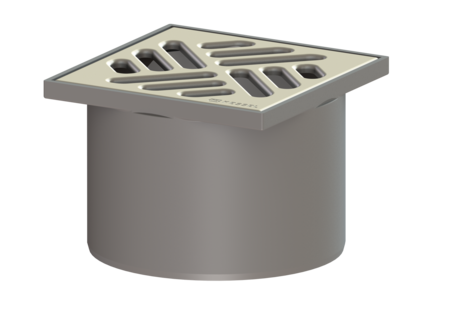

Upper section, st. st. grid, 100x100mm
KESSEL Upper section, height 78 mm, length 107 mm, width 107 mm, type of cover Slotted cover, locking placed, frame material ABS, design cover
| Item no. | 27165 |
|---|---|
| GTIN | 4026092000298 |
| Price group | 10 |
Used in combination with a drain body of the KESSEL modular system 100, the upper section is suitable for indoor point drainage. Variant System: 100 Dimensions Net weight: 0,18 kg Gross weight: 0,21 kg Height: 78 mm Packaging dimension: length: 108 mm Packaging dimension: width: 108 mm Packaging dimension: height: 77 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 8 mm Surface: Polished SST Frame material: ABS Locking: placed Load class: K 3 (EN 1253-1) Rim width: 107 mm Rim length: 107 mm Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| CAD Data | |
| Approval |
- Cover material (abdeckung_material):
Stainless steel 14301
- Frame material (rahmen_material):
ABS
- Upper section material (material_aufsatzstueck):
ABS
