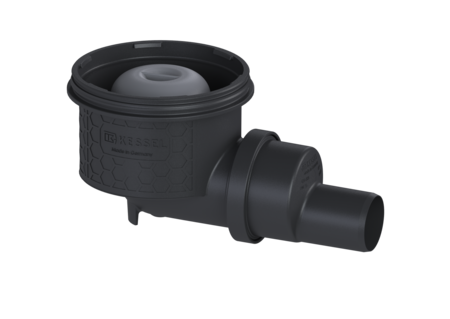

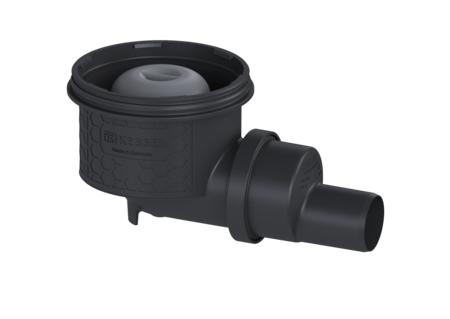

Practicus drain body

DN 50, Horizontal outlet

45150
45150
PDF product data sheet

KESSEL Practicus drain body, type of waterproofing, socket lateral, nominal size (DN) 50, odour trap included, waterproofing layer upper section by Connection flange

  • Hygiene: hygienic, absolutely corrosion-free and durable material
  • absolutely corrosion-free and durable material
Item no. 45150
GTIN 4026092033548
Price group 10

    Practicus drain body DN 50, Horizontal outlet
    In combination with an upper section, the Practicus polymer drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The drain meets particular sound insulation requirements in accordance with the measurements of the Fraunhofer Institute in Stuttgart. Variant System: 125 Waterproofing layer on the upper section: Connection flange Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm Odour trap: included Sustainable: through the use of recycled material Dimensions Net weight: 0,68 kg Gross weight: 0,79 kg Diameter: 135 mm Height: 132 mm Packaging dimension: length: 200 mm Packaging dimension: width: 200 mm Packaging dimension: height: 175 mm Tank/drain body Number of outlets: 1 Material of drain body: PP Socket version: lateral
      Title Item no.
    48176 Upper section Slotted cover, anti-slip, L 15 48176 Show
    48907 Variofix upper section Slotted cover, 304 SST, anti-slip, L 15 48907 Show
    59192 Ferrofix upper section Sys 125, for PVC, Hole patt cover, L 15 59192 Show
      Title Item no.
      Title Item no.
    48403 Extension section H: 140 mm, with glued flange 48403 Show
    48404 Extension section H: 147 mm, with pressure sealing flange 48404 Show
    48900 Extension section H: 120 mm, with glued flange 48900 Show
    48987 Extension section H: 136 mm, without inlet 48987 Show
    48989 Extension section H: 136 mm, with side inlet DN 50 48989 Show
      Title Item no.
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): PP
    • Socket version (stutzen_ausfuehrung): lateral
    • Odour trap (geruchsverschluss): included
