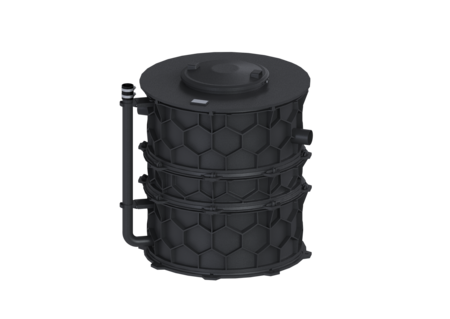

Grease separat. EasyClean Modular

free, NS 3, Direct, 3-part, TS

PDF product data sheet

The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. Thanks to the modular design, the separator can be inserted even where access is extremely tight. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap. A service access cover with odour-tight cover and quick-release closures makes easy access possible for cleaning and maintenance work. A direct disposal pipe socket is available for odour-reduced manual disposal. 20 year polyethylene warranty.

  • Ideal where access is tight
  • can be divided into 3 parts for insertion, for an insertion opening of max. 66 cm
  • Direct disposal with the tank closed

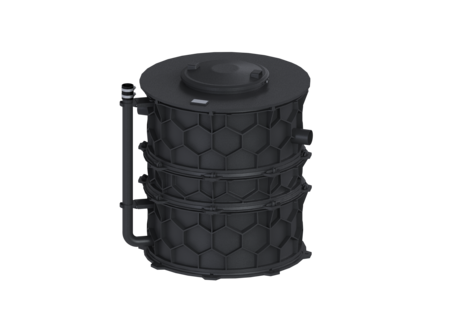

Item no. 93003-D1-R2-TS
GTIN 4026092104040
Price group 60

    Grease separat. EasyClean Modular free, NS 3, Direct, 3-part, TS
    The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. Thanks to the modular design, the separator can be inserted even where access is extremely tight. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap. A service access cover with odour-tight cover and quick-release closures makes easy access possible for cleaning and maintenance work. A direct disposal pipe socket is available for odour-reduced manual disposal. 20 year polyethylene warranty. Variant Sound absorption mat: three-piece chamber Disposal variant: Direct Protection class motor: no Sludge bucket: no Nominal size (NS): 3 SonicControl: no Disposal system: Disposal connection Refill inlet in accordance with DIN 1988: no Type of disposal: manual General characteristics Material: PE Standard: EN 1825: 2004DIN 4040-100 Installation situation: free-standing installation Delivery state: Installation-ready (connection parts must be connected on site) Special feature short text: Dimensions Net weight: 110 kg Gross weight: 128 kg Height centre section: 500 mm Height tank bottom up to centre section: 550 mm Height centre section to top edge of tank: 580 mm Required access area, width: 1383 mm Required access area, height: 1300 mm Required access area, length: 1240 mm Packaging dimension: width: 1240 mm Packaging dimension: height: 1383 mm Packaging dimension: length: 1300 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 885 mm Distance pipe bottom inlet to tank bottom: 955 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 Inlet nominal size (DN): 110 mm Inlet nominal size (DN): 100 Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: black Cover locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 420 l Hose: 300 l Storage quantity of light liquid: 120 l Control Max. permissible switching frequency: no
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Material (material): PE
    • Cover material (abdeckung_material): Polymer
    • Disposal system (entsorgungseinrichtung): Disposal connection
    • Installation situation (einbausituation): free-standing installation
    • Nominal size (NS) (nenngroesse): 3
