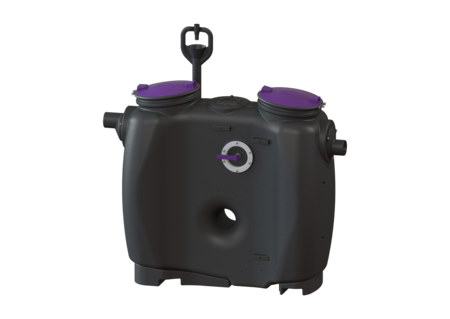

Grease separator EasyClean free
NS 2, Standard, Ref. in., Insp. Win., SC
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a tapered base for fast and clean disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. Manual disposal is carried out with the tank open. 20 year polyethylene warranty.
- Direction of flow can be changed thanks to self-sealing interchangeable hubs (NS 2- NS 10)
- Can be retrofitted up to Auto Mix & Pump
- Low-maintenance operation
Item no. | 93002.32 |
---|---|
GTIN | 4026092063422 |
Price group | 60 |
Grease separator EasyClean free NS 2, Standard, Ref. in., Insp. Win., SC
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a tapered base for fast and clean disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. Manual disposal is carried out with the tank open. 20 year polyethylene warranty. Variant Disposal variant: Standard Protection class motor: no Sludge bucket: yes Nominal size (NS): 2 SonicControl: yes Refill inlet in accordance with DIN 1988: yes Type of disposal: manual with suction hose Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Installation situation: free-standing installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 98,5 kg Gross weight: 128,5 kg Set-up area, width: 674 mm Set-up area, height: 1434 mm Set-up area, length: 1736 mm Required access area, width: 674 mm Required access area, height: 1434 mm Required access area, length: 1500 mm Packaging dimension: width: 1050 mm Packaging dimension: height: 1700 mm Packaging dimension: length: 1900 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 985 mm Distance pipe bottom inlet to tank bottom: 1055 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 Inlet nominal size (DN): 110 mm Inlet nominal size (DN): 100 Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Cover locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 400 l Total volume: 600 l Hose: 200 l Storage quantity of light liquid: 100 l Control Max. permissible switching frequency: no
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Sampling system DN 100/150, Vertical outlet | 915870 | Show | |
Sampling system DN 100/150, Horizontal outlet | 915871 | Show | |
Access panel for mounting on-wall | 917413 | Show | |
Access panel for in-wall installation | 917414 | Show | |
Cable extension 10 m, for SonicControl grease separator | 917871 | Show | |
Cable extension 20 m, for SonicControl grease separator | 917872 | Show | |
Cable extension 30 m, for SonicControl grease separator | 917873 | Show |
Title | Item no. | ||
---|---|---|---|
Seal DN 150 | 680003 | Show | |
Seal DN 200 | 680128 | Show | |
Screw 10x3, A2 | 680164 | Show | |
Inlet socket for grease separator NS 2-4 | 680435 | Show | |
Outlet socket for grease separator NS 2-4 | 680437 | Show | |
Inlet/outlet structure for grease separator NS 2-10 | 680439 | Show | |
EasyClean Inspection Window | 913109 | Show | |
Cover for Euro separator 420mm | 916904 | Show | |
Quick release clamp420mm | 917004 | Show | |
Gasket for separator cover 420mm | 917204 | Show |
Manuals | |
---|---|
Test Reports and Certificates | |
Declaration of Performance | |
Declaration of Conformity |
- Material (material): PE
- Cover material (abdeckung_material): Polymer
- TÜV test mark (pruefzeichen): ID 1111241796
- Installation situation (einbausituation): free-standing installation
- CE marking (ce_kennzeichnung): yes
- Nominal size (NS) (nenngroesse): 2
- Inlet nominal size (DN) (zulauf_nennweite_dn): 100 mm
- Outlet nominal size (DN) (auslauf_nennweite_dn): 100 mm
- Set-up area, width (aufstellflaeche_breite): 674 mm
- Set-up area, length (aufstellflaeche_laenge): 1,736 mm
