Technology kit

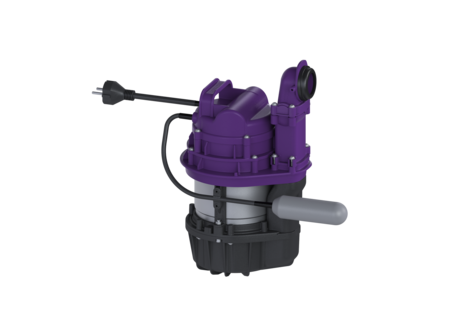

Aqualift S Comp GTF1200Res Mon fl.switch
For combination with a KESSEL shell kit for creating a Mono lifting station for wastewater without sewage with a GTF1200 wastewater pump. The ready to plug in lifting station for wastewater without sewage is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. The system for installation in the floor slab is pre-assembled for final installation on site. KESSEL technology kit consisting of: - Pump with multi-vane vortex impeller for maximum operating safety - Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems - Includes float switch for level measurement
| Item no. | 281200C-TK |
|---|---|
| GTIN | 4026092108130 |
| Price group | 20 |
Technology kit Aqualift S Comp GTF1200Res Mon fl.switch
For combination with a KESSEL shell kit for creating a Mono lifting station for wastewater without sewage with a GTF1200 wastewater pump. The ready to plug in lifting station for wastewater without sewage is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. The system for installation in the floor slab is pre-assembled for final installation on site. KESSEL technology kit consisting of: - Pump with multi-vane vortex impeller for maximum operating safety - Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems - Includes float switch for level measurement Variant Type of system: Single unit Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems Rim width: Float switch Dimensions Net weight: 9,75 kg Gross weight: 10,54 kg Packaging dimension: width: 326 mm Packaging dimension: height: 293 mm Packaging dimension: length: 379 mm Tank/drain body Pumping volume: 16 l Pumping device Pump control: GTF 1200 resistant Number of pumps: 1 Weight: 10 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 6,2 A Length of mains cable for pump: 5 m Self-diagnosis system (SDS): I Insulation class: F Protection class control unit: IP 68 (3m) DSC: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 15,5 m³/h Max. pumping height: 9 m Speed: 2650 U/min Power P1: 1,4 kW Power P2: 0,84 kW Operating mode: S3 - 10 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 30 mm Control Level measurement instrument: Float switch Type of level measurement: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Number of pumps (anzahl_pumpen): 1
- (schaltgeraet):
